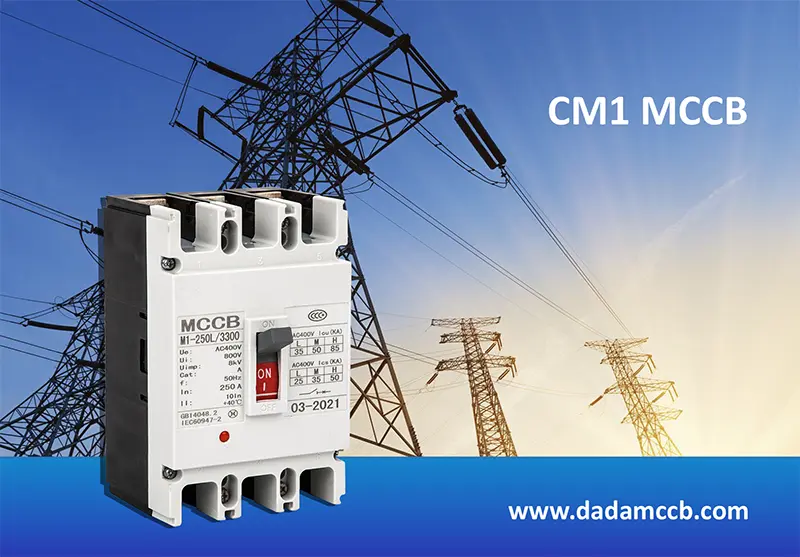

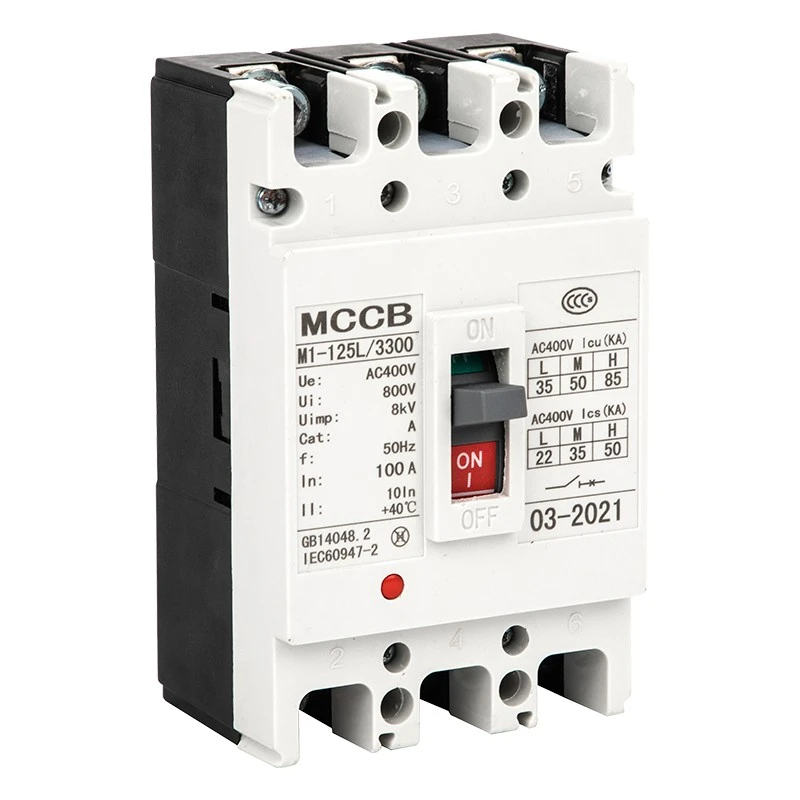

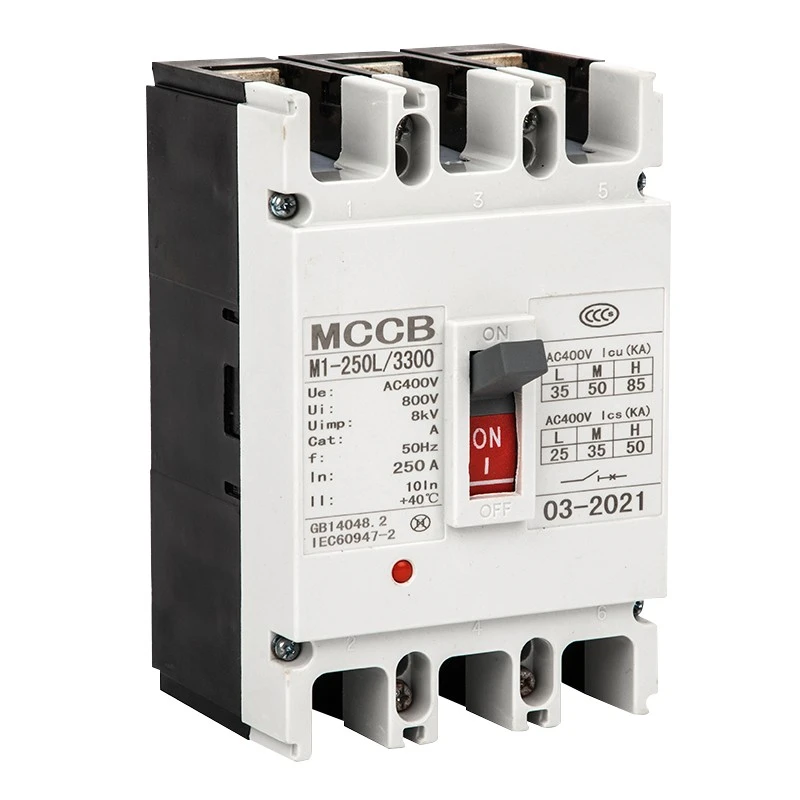

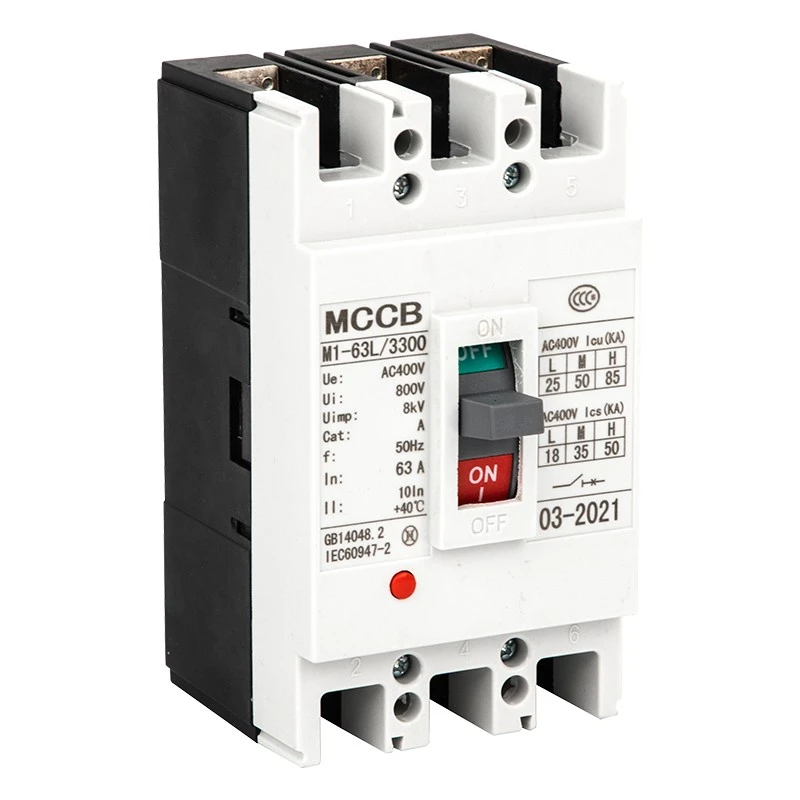

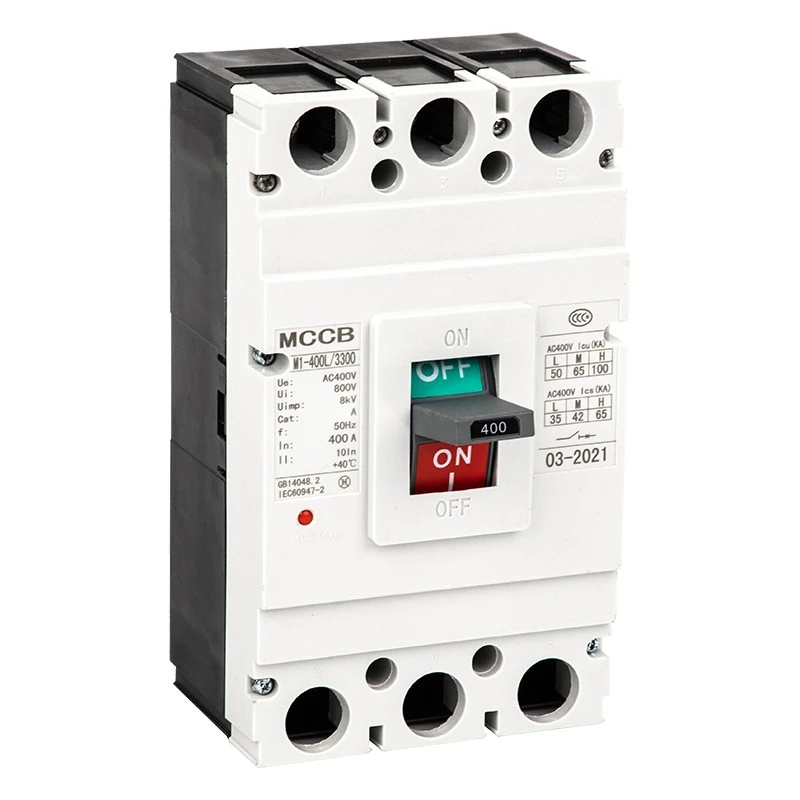

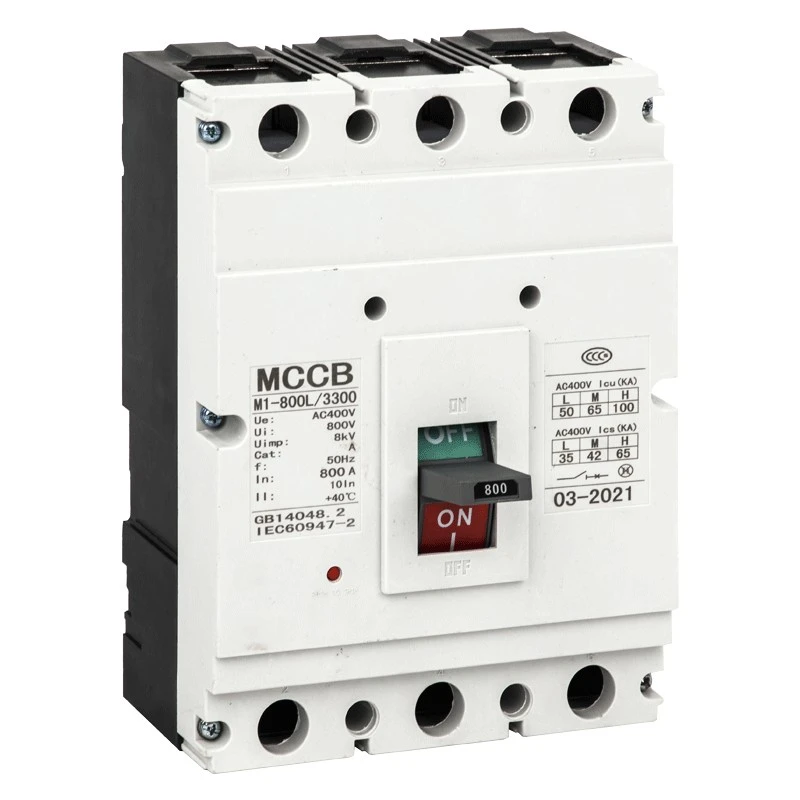

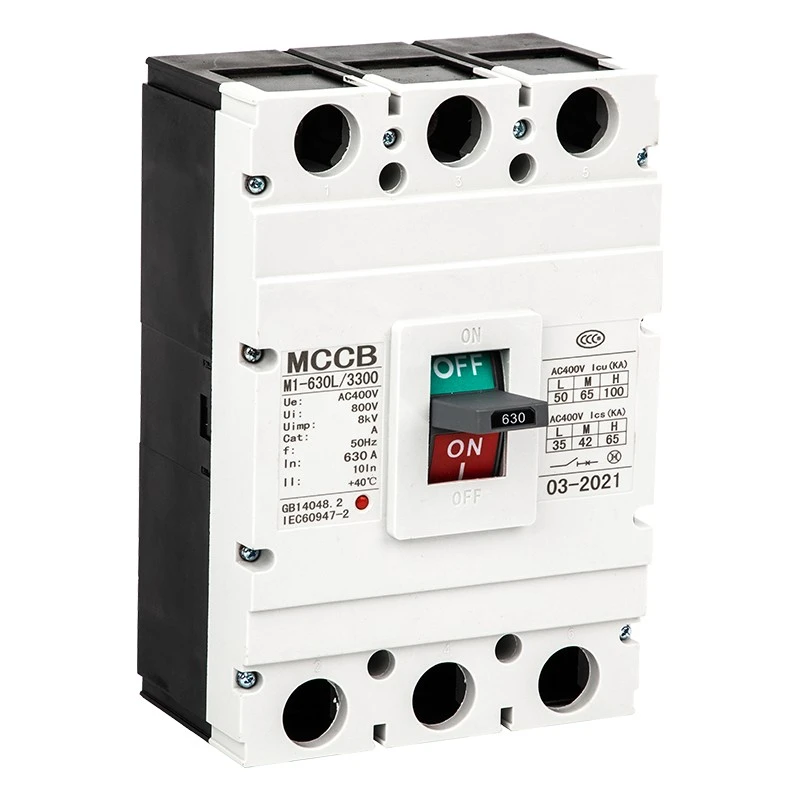

CM1 Molded Case Circuit Breaker
Model:DAM2 (CM1) Series
CDADA CM1 Molded Case Circuit Breaker (MCCB) e hahiloe bakeng sa theko e ngata, e nang le setifikeiti sa IEC60947-2 le ts'ebetso e tsitsitseng bakeng sa litsamaiso tsa matla a indasteri. CM1 MCCB e sebelisa sebopeho se matla a holimo le mochini o tšepahalang oa ho khoetha, o bonolo ho o kenya le ho o hlokomela. E kopanya tšireletso e bohlale le moralo o tšoarellang, ho netefatsa bophelo bo bolelele ba ts'ebeletso kabong ea matla le lits'ebetso tse boima tsa indasteri.
Letoto lena la DAM2 (CM1) CM1 Molded Case Circuit Breaker ke sesebelisoa se phahameng sa ts'ireletso sa motlakase o tlase se hlahisoang ke Shanghai DADA Electric Co., Ltd., moetsi le mofani oa thepa ea ka tšeptjoang Chaena. Ka voltage ea motlakase e lekantsoeng ho fihla ho 800V, e lekantsoe matla a sebetsang a 400V/690V, mme e lekantsoe hajoale ho tloha 63A ho isa 1600A, e sebelisoa haholo bakeng sa kabo ea matla, ts'ireletso ea potoloho, taolo ea makoloi le ho fetoha ho sa tloaelehang.
Letoto lena le ts'ehetsa ts'ebetso e otlolohileng le e otlolohileng, e tsamaellana le maemo a IEC60947-2, 'me e fana ka ts'ireletso e felletseng, ea potoloho e khuts'oane le e tlase-voltage bakeng sa lisebelisoa tsa motlakase.
Likarolo tsa Sehlahisoa
★ Rated insulation voltage: 800V; Matla a sebetsang: 400V / 690V
★ Sebaka sa hona joale: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ Ho senya bokhoni: L standard, M medium, H high breaking mofuta
★ Thermal-magnetic & electromagnetic dual release modes
★ Ho kengoa ka tsela e otlolohileng / e rapameng, e loketseng tšebeliso ea ho itšehla thajana
★ Wide ambient mocheso mefuta e fapaneng: -5℃~+40℃
★ Bophahamo ≤2000m, tekanyo ea tšilafalo 3
Lisebelisoa
CDADA CM1 Molded Case Circuit Breaker e sebelisoa haholo lits'ebetsong tsa kabo ea matla a indasteri le a sechaba, ho kenyeletsoa lifeme, meaho, litsi tsa data, liteishene tsa motlakase, meaho, lisebelisoa tsa mochini le likhabinete tsa kabo ea motlakase. E boetse e sebelisoa bakeng sa ts'ireletso ea makoloi, phetoho ea potoloho, le phepelo e sireletsehileng ea matla ho tsa kaho, metallurgy, petrochemical le liindasteri tse ling.
Tekheniki Parameters
★ Maemo: IEC60947-2, GB14048.2
★ Khafetsa: AC 50Hz/60Hz
★ Pole: 1P,2P, 3P, 4P
★ Phatlalatso: Thermal-magnetic (habedi), electromagnetic (hang-hang)
★ Boemo ba hang-hang: Mofuta oa kabo 10In±20%; Mofuta oa koloi 12In±20%
★ Ho kenya: Wiring e ka pele, mohala o ka morao, mofuta oa plug-in
★ Ts'ebetso: Manual, mochine o sebetsang oa motlakase
|
Mohlala |
Pole |
E lekantsoe hajoale (A) |
E lekantsoe ho sebetsa motlakase (V) |
E lekantsoe ho kenya letsoho motlakase (V) |
E lekantsoe ka nako e khuts'oane ea ho robeha ha potoloho (Icu) |
Flashover bohole (mm) |
||
|
Teko ea motlakase (V) |
Icu (kA) |
Ics (kA) |
||||||
|
DAM2L-63 |
3 |
10, 16, 20, 25, 32, 40, 50, 63 |
400 |
500 |
400×1.10 |
25 |
18 |
0 |
|
DAM2M-63 |
3,4 |
50 |
35 |
|||||
|
DAM2L-100 |
3,4 |
16,20,25,32,40, 50, 63,80,100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
DAM2M-100 |
2, 3, 4 |
50 |
35 |
|||||
|
DAM2H-100 |
3 |
85 |
50 |
|||||
|
DAM2L-100 |
3,4 |
690 |
10 |
5 |
||||
|
DAM2M-100 |
2, 3, 4 |
20 |
10 |
|||||
|
DAM2L-225 |
3,4 |
100, 125, 140, 160,180,200,225 |
400 |
800 |
35 |
25 |
||
|
DAM2M-225 |
2, 3, 4 |
50 |
35 |
|||||
|
DAM2H-225 |
3 |
85 |
50 |
|||||
|
DAM2L-225 |
3,4 |
690 |
10 |
5 |
||||
|
DAM2M-225 |
2, 3, 4 |
20 |
10 |
|||||
|
DAM2L-400 |
3 |
225,250,315, 350,400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
DAM2M-400 |
3,4 |
65 |
42 |
|||||
|
DAM2H-400 |
3 |
100 |
65 |
|||||
|
DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
DAM2M-400 |
3,4 |
20 |
10 |
|||||
|
DAM2L-630 |
3 |
400,500,630 |
400 |
800 |
50 |
35 |
||
|
DAM2M-630 |
3,4 |
65 |
42 |
|||||
|
DAM2H-630 |
3 |
100 |
65 |
|||||
|
DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
DAM2M-630 |
3,4 |
20 |
10 |
|||||
|
DAM2M-800 |
3 |
630,700,800 |
400 |
800 |
75 |
50 |
||
|
DAM2H-800 |
3 |
100 |
65 |
|||||
|
DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
DAM2-1250 |
3 |
800,1000,1250 |
400 |
800 |
85 |
42 |
||
|
DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Litekanyo tsa Outline & Installation
CM1 MCCB ea rona e fana ka lintlha tse felletseng tsa mefuta ea 63A–1600A, ho kenyeletsoa likhoele tse ka pele, likhoele tse ka morao le mofuta oa plug-in. Mefuta e fapaneng ea liforeimi (63/100/225/400/630/800/1250/1600) e bapisitse litekanyo tsa H, H1, H2 bakeng sa ho kenya likhabinete tse tloaelehileng. Bophahamo ba mochini oa ts'ebetso oa letsoho le motlakase le bona bo lekantsoe bakeng sa kopano e bonolo.
Lisebelisoa & Mesebetsi
Lisebelisoa tsa ka hare
★ Ho lokolloa ha Shunt: 70% -110% e lekantsoe motlakase bakeng sa ho khoptjoa ho tšepahalang
★ Phokotso e tlase ea motlakase: 35%–70% ea ho theoha ha motlakase bakeng sa ts'ireletso ea boiketsetso
★ Ho ikopanya le mothusi & ho ikopanya le alamo: Maikutlo a matšoao le alamo ea phoso
★ Tokollo e inehetseng ea mitha e lefelloang esale pele: Ho lieha ho khoptjoa 0.5–2s
Lisebelisoa tsa Kantle
★ Mokhoa oa ho sebetsa ka letsoho
★ Mochine o sebetsang oa motlakase (motlakase).
★ Li-separators tsa mokhahlelo, li-screws tse ntseng li eketseha, lisebelisoa tsa libese

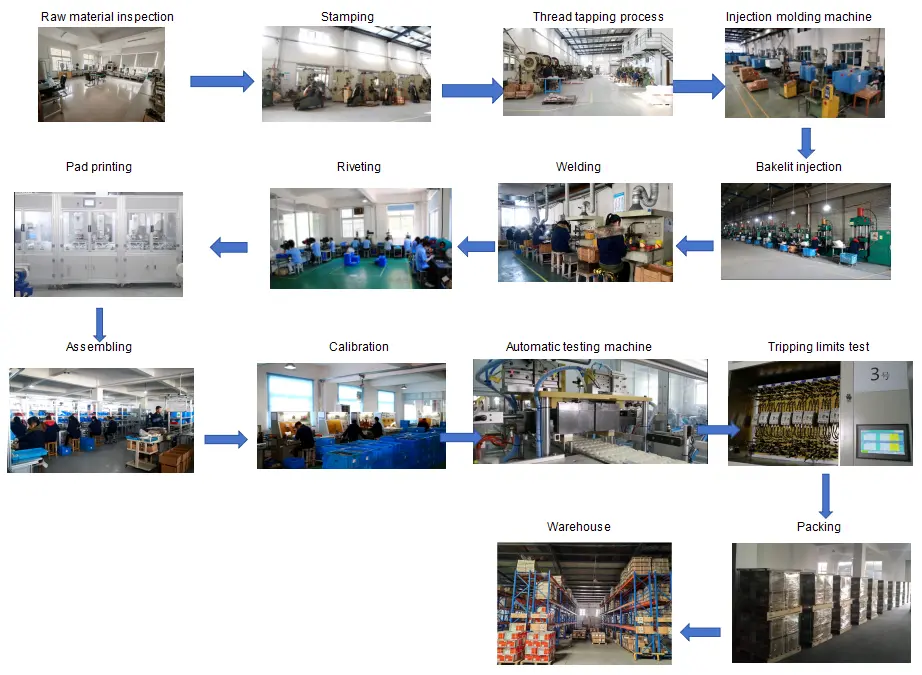

Phallo ea Taolo ea Boleng
Tlhahlobo ea thepa e tala → Ts'ebetso ea tlhahiso → Mohala oa kopano → Teko ea sebopeho sa leeto → Teko ea ho phahama ha mocheso → Teko e khutšoane ea potoloho → Teko ea botsofali → Tlhahlobo ea ponahalo le boholo → Packaging → Tlhahlobo ea ho qetela pele e romelloa

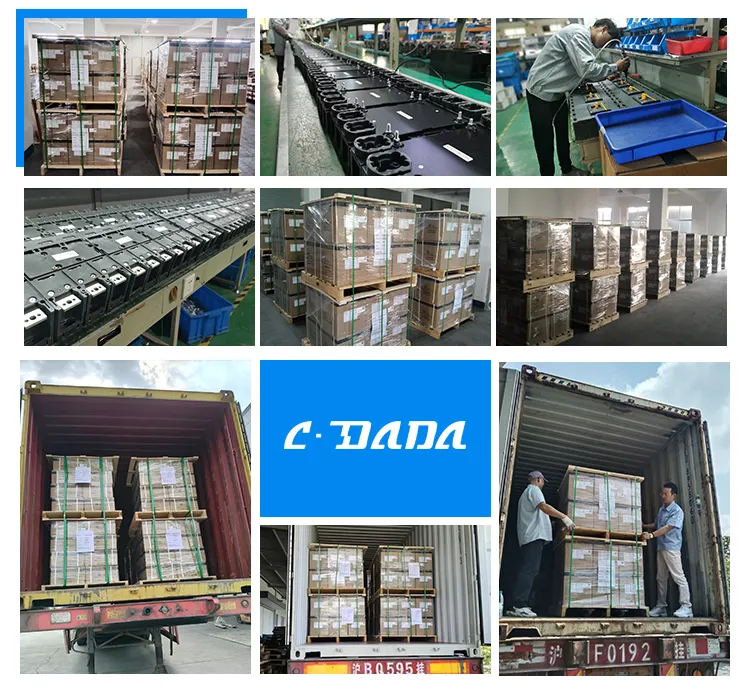

Packaging & Shipping
★ Mabokose a tloaelehileng a ho romelloa kantle ho naha + pallet ea lehong bakeng sa lipalangoang tse bolokehileng
★ Label: mohlala, hona joale, palo, bongata, setifikeiti
★ E loketse lisebelisoa tsa leoatle, moea le naha
Setifikeiti
IEC60947-2, GB14048.2, CE, CB, ROHS le litumello tse ling tsa machaba.

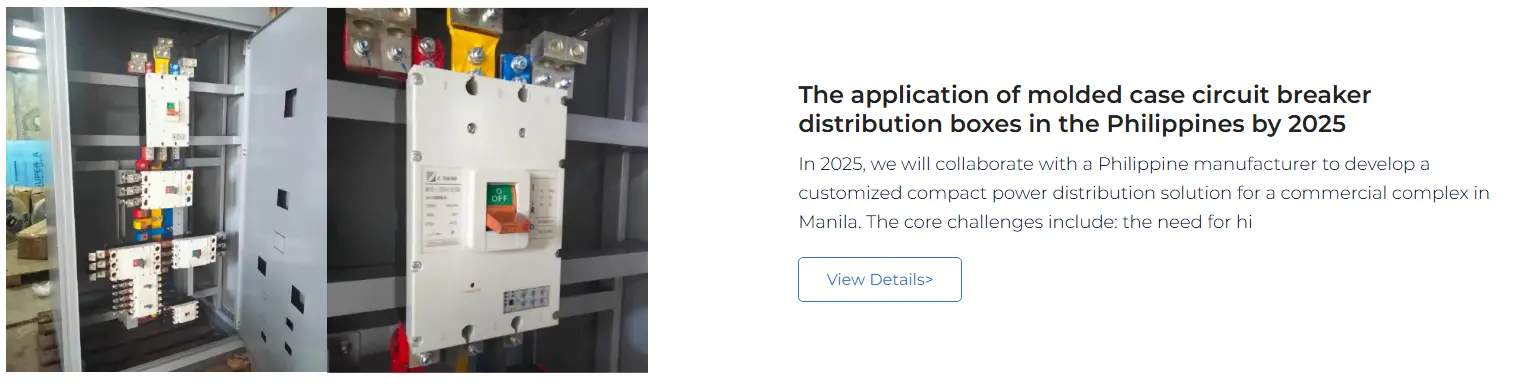

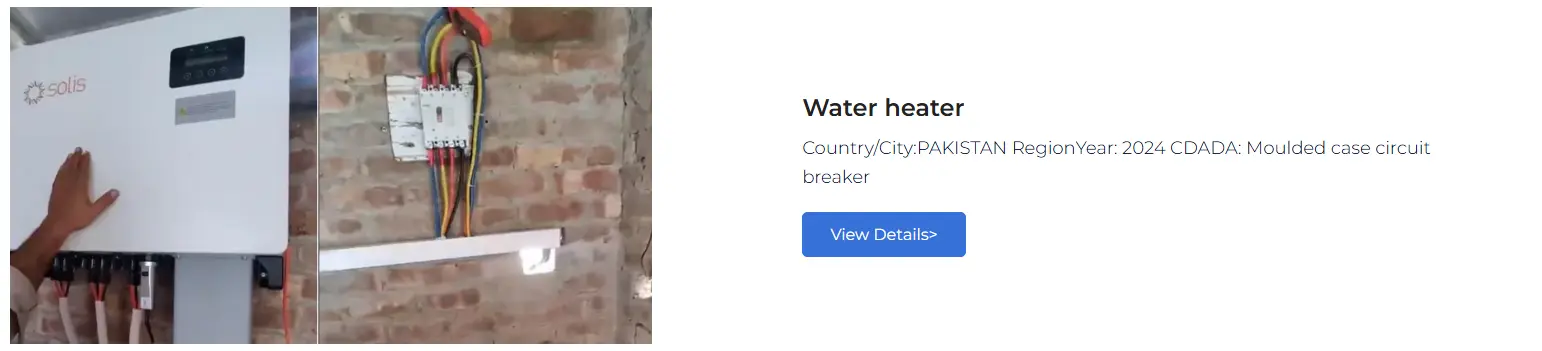

Linyeoe tsa Tšebelisano ea Bareki
CDADA DAM2 letoto la MCCB le fuoe bareki ba lefats'e, ho kenyeletsoa bahokahanyi ba tsamaiso ea motlakase, baetsi ba lisebelisoa tsa indasteri, lifeme tsa switchgear, likonteraka tsa kaho le lihlahisoa tsa OEM Europe, Asia Boroa-bochabela, Bochabela bo Hare, Afrika le Amerika Boroa. Re fana ka phepelo e tsitsitseng ea bongata le litharollo tse ikhethileng bakeng sa balekane ba nako e telele.
