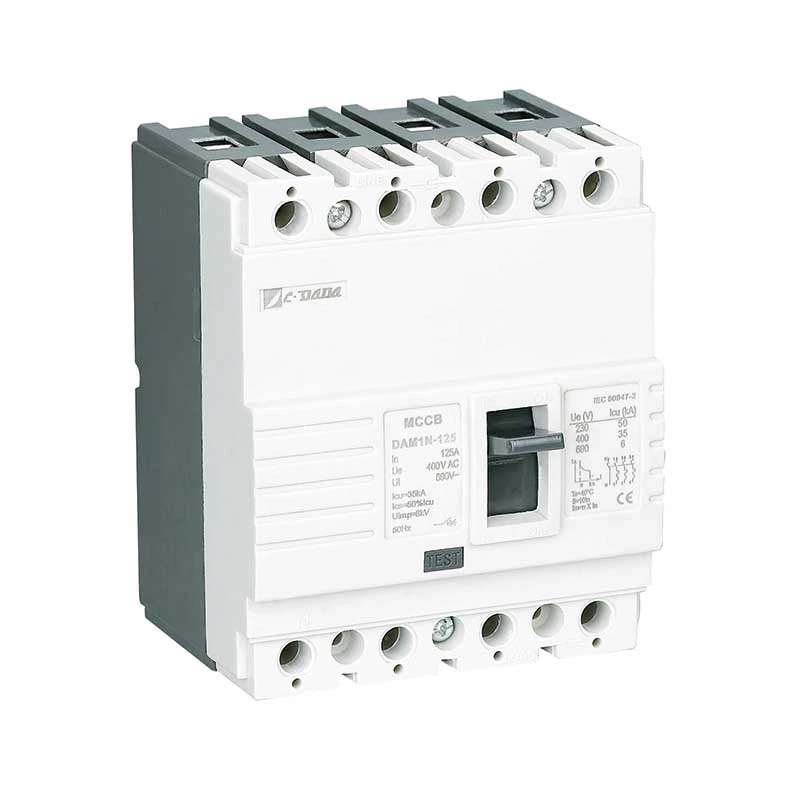

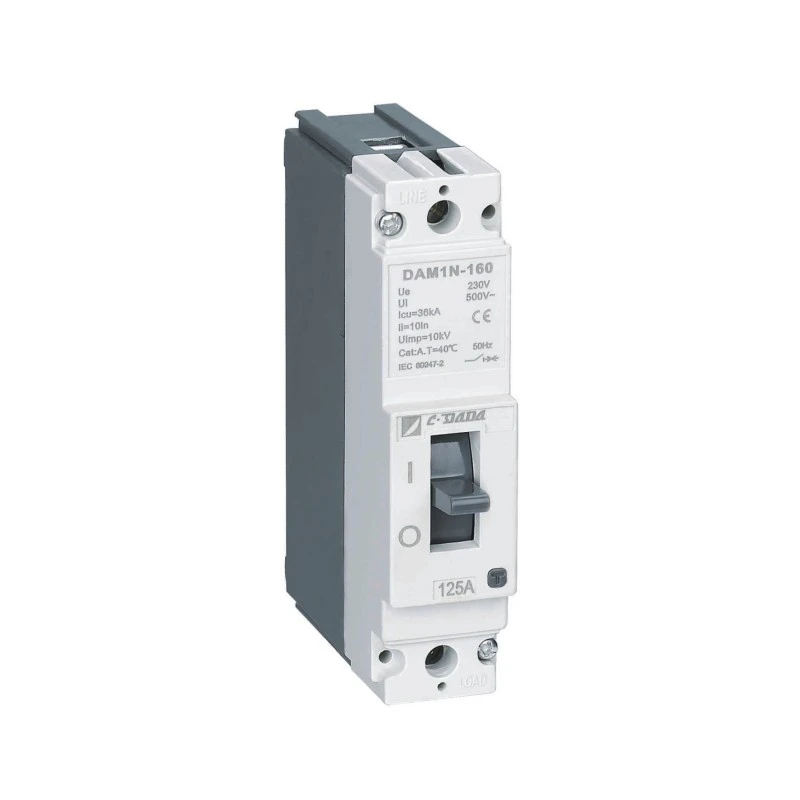

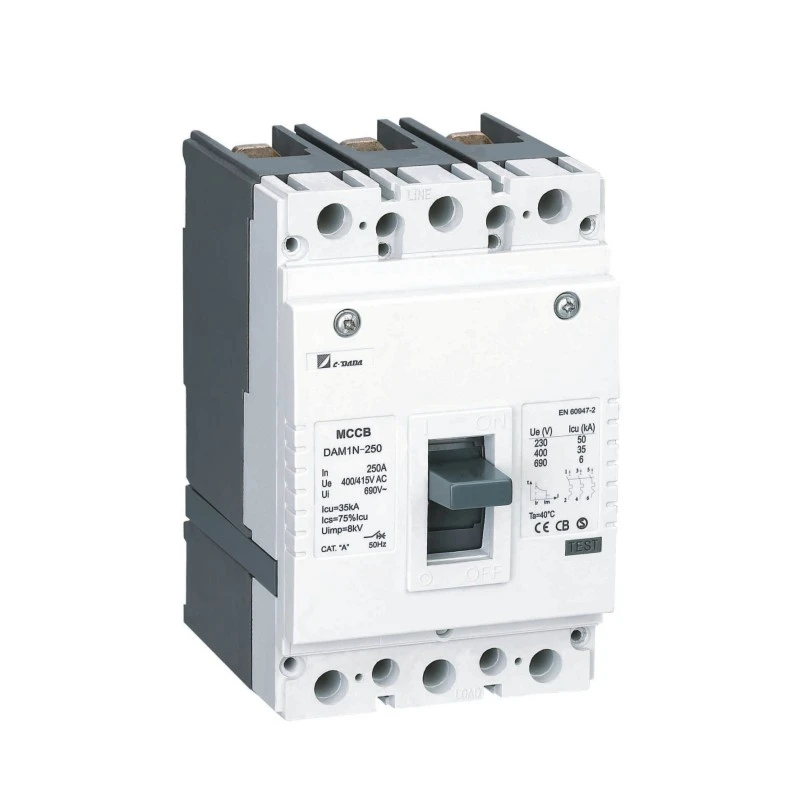

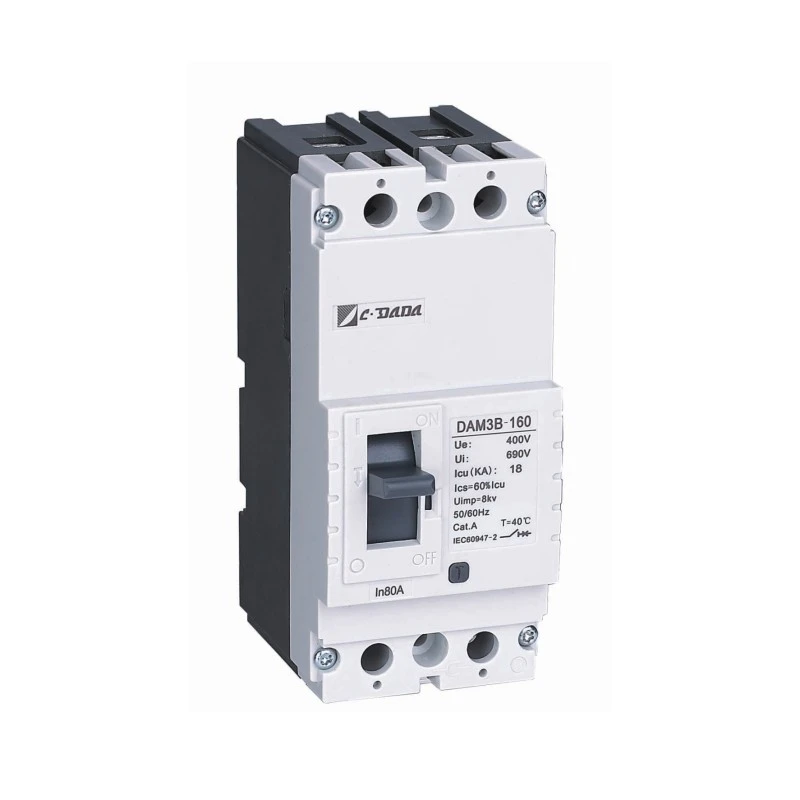

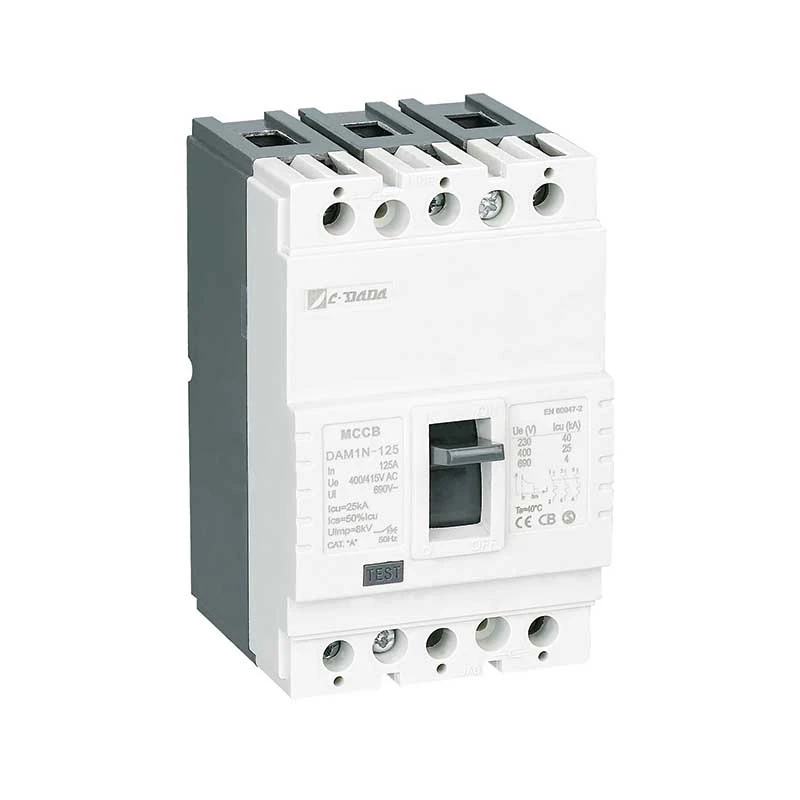

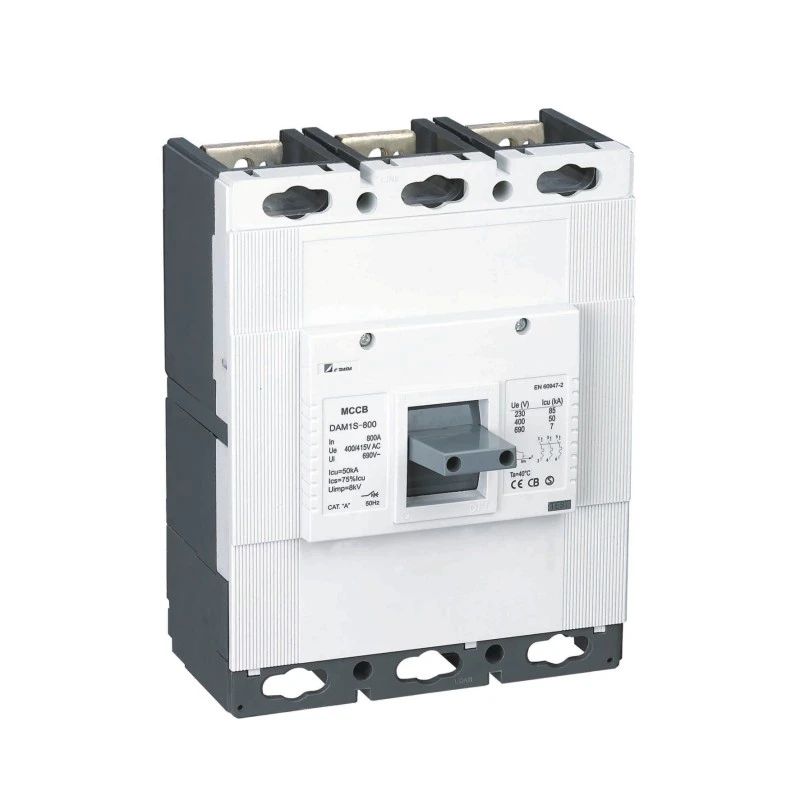

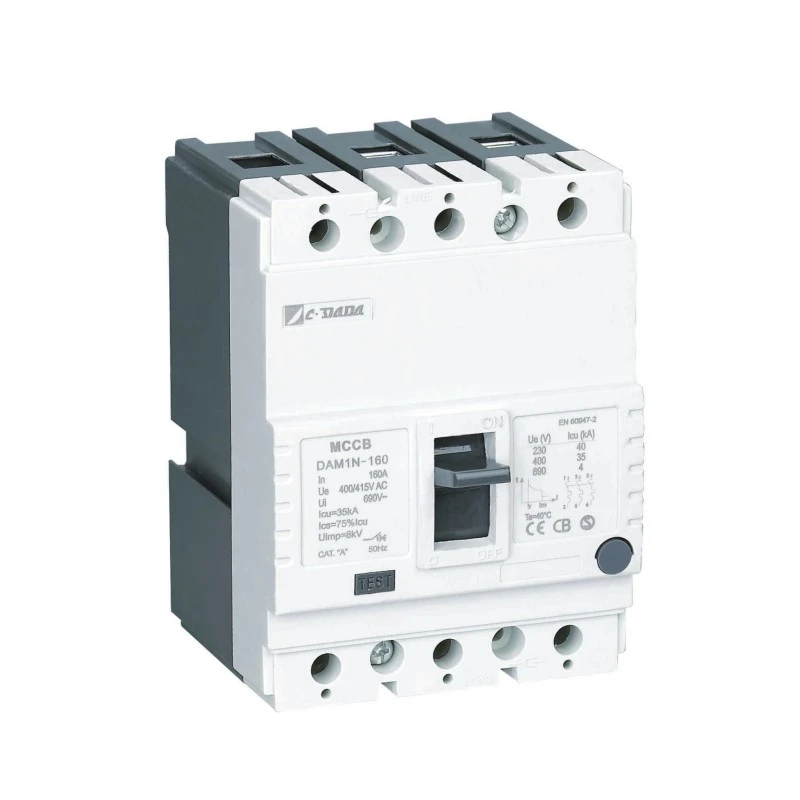

Mofuta o tsitsitseng oa Molded Case Circuit Breaker
Model:DAM1 Series
Mohloli oa boleng bo phahameng le o tsoetseng pele oa Mofuta o Felletseng oa Molded Case Circuit Breaker (MCCB) ho tsoa Shanghai DADA Electric-certified (CE, CB, ASTA), thermal-magnetic protection, 12.5A–1600A. E loketse liphanele tsa indasteri le tsa khoebo. Ho bonolo DIN-rail kapa phanele thabeng. OEM & litaelo tse ngata lia amoheloa, khetha CDADA e le morekisi oa hau ka kholiseho.
CDADA Fixed Type Molded Case Circuit Breaker (MCCB) DAM1 letoto le fihlela litlhoko tsa kopo leha e le efe, ho tloha ho basebelisi ba banyenyane ho ea ho li-transformer tsa indasteri le ho kenya kabo.
Letoto la DAM1 le na le boholo ba liforeimi tse supileng, ho fihla ho 1600A, matla a ho senya ho fihla ho 100 kA, motlakase o sebetsang ho fihlela ho 1000 Volts, o kopana habonolo le litlhoko tse fapaneng tsa lisebelisoa tsa motlakase le tsa mechine, ho fana ka mefuta e fapaneng ea tharollo ea ho kenya ho eketsa litlhoko tsa tsamaiso leha e le efe ea matla.
Ka setifikeiti sa lefats'e sa KEMA, ASTA, SEMKO, CB, CE, ROHS; DAM1 ke khetho e ntle ka ho fetisisa bakeng sa limela tsa lefats'e tsa lisebelisoa tsa motlakase le OEM.
Litlhaloso Tse Bohlokoa
Mekhahlelo ea motlakase ea DAM1 MCCB e bopehileng ea sekhechana sa potoloho
| Mohlala | khoutu | Icu (KA) | Ics (KA) | Rated Hajoale -Ka | Ui(V) | Ue(V) | Pole | Uimp(V) |
| DAM1-160 | B | 25 | 18.75 | 10 - 12,5 - 16 - 20 - 25 - 32 - 40 - 50 - 63- 80 - 100 - 125-160A | 500V | 230V | 1P | 10000 |
| N | 36 | 27 | ||||||
| DAM1-200 | B | 25 | 18.75 | 10 - 12,5 - 16 - 20 - 25 - 32 - 40 - 50 - 63- 80 - 100 - 125-160(200)A | 750V | 400V | 2P | 10000 |
| N | 36 | 27 | ||||||
| DAM1-125 | B | 25 | 12.5 | 10 - 12,5 - 16 - 20 - 25 - 32(30) - 40 - 50 - 63(60) - 80 - 100 - 125A | 750V | 400V | 3P / 4P | 10000 |
| N | 35 | 17.5 | ||||||
| S | 50 | 37.5 | ||||||
| DAM1-160 | B | 25 | 12.5 | 10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A | 750V | 400/415V | 3P / 4P | 8000 |
| N | 35 | 26.25 | ||||||
| S | 50 | 37.5 | ||||||
| DAM1-250 | N | 35 | 26.25 | 63 - 80-100-125 - 160(180) - 200(225) - 250(320)A | 750V | 400/415V | 3P /4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 65 | 48.75 | ||||||
| G | 85 | 51 | ||||||
| DAM1-630(400) | N | 35 | 26.25 | 250 - 315 (350)- 400 - 500 - 630A | 750V | 400/415V | 3P /4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 70 | 52.5 | ||||||
| G | 85 | 52.5 | ||||||
| DAM1-800 | N | 35 | 35 | 400 - 500 - 630 (700)- 800 -1000A | 750V | 400/415V | 3P /4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 70 | 52.5 | ||||||
| G | 85 | 52.5 | ||||||
| DAM1-1600 | S | 65 | 50 | 800 -1000 - 1250 - 1600A | 750V | 400V | 3P / 4P | 8000 |
| H | 85 | 50 | ||||||
| G | 100 | 50 |
● Teko ea Icu:O-t-CO(O:Open maneuver,CO:Close-Open maneuver,t:Ho leta nako)
● Ics:O-t-CO-t-CO teko(O:open maneuver,CO:Close-Open maneuver,t:Ho leta nako)
★ ON/I Boemo: E bontša hore likhokahano tsa sekhechana li koetsoe. Boemong bona, lehare la ho robeha le maemong a holimo
★ TRIP Position: E bontša hore breaker e butsoe ka lebaka la ho hlōleha leha e le efe (ho feta mojaro kapa potoloho e khutšoanyane). Tabeng ena, lever ea breaker e boemong bo bohareng pakeng tsa maemo a ON le OFF. E le ho nka breaker, e leng boemong ba leeto, ho ON boemo; sutumelletsa seqhenqha ho ea tlase joalo ka ha ho bonts'itsoe ke lets'oao la OFF
Breaker e tla behoa ka "tobetsa" molumo. Ka mor'a moo, hula lever joalokaha ho bontšoa ke letšoao la ON ho koala sekheo.
★ OFF/0 Boemo: E bontša hore mabitso a sehahi a bulehile. Ka tsela ena, lever ea ho robeha e maemong a tlase.
Mekhahlelo ea 'mele ea DAM1-125 MCCB e bopehileng ka sekhechana sa potoloho
| Sehlopha (EN 60947-2/IEC 60947-2) | Mamello |
|
||||||
| Mohlala | Pole | Thepa ea Dielectric (V) | sebaka se seholo (mm) | Kakaretso ea Lipotoloho | Bophelo ba Motlakase | Bophelo ba Mechini | Potoloho e ka sehloohong | Potoloho e thusang |
| DAM1-160 | 1P | 2500 | ≤30/0 | 20000 | 3000 | 17000 | A/0 | AC-15 |
| DAM1-200 | 2P | 2500 | ≤30/0 | 15000 | 2500 | 12500 | A/0 | AC-15 |
| DAM1-125 | 3P / 4P | 2500 | ≤30/0 | 8000 | 1000 | 7000 | A/0 | AC-15 |
| DAM1-160 | 3P / 4P | 3000 | ≤30/0 | 8000 | 1000 | 7000 | A/0 | AC-15 |
| DAM1-250 | 3P /4P | 3000 | ≤30/0※ | 8000 | 1000 | 7000 | A/B | AC-15 |
| DAM1-630(400) | 3P /4P | 3000 | ≤60/0※ | 5000 | 1000 | 4000 | A/B | AC-15 |
| DAM1-800 | 3P /4P | 3000 | ≤80/0※ | 5000 | 1000 | 4000 | A/B | AC-15 |
| DAM1-1600 | 3P / 4P | 3000 | ≤80/0※ | 3000 | 500 | 2500 | A/B | AC-15 |
Molao-motheo oa Tšebetso le Mokhoa oa Tšireletso
★ Tšireletso ea Mocheso (Moroalo o Felletseng)
Bimetallic strip e kobeha ha e futhumatsoa ke overcurrent e tsitsitseng (> rated current). Lebelo la ho kobeha le lekana le boholo ba hona joale-ho netefatsa ho khoptjoa ka nako e fapaneng ho etsisa mokhoa oa mocheso oa cable, ho thibela maeto a khathatso ha u ntse u sireletsa lisebelisoa.
★ Tšireletso ea Magnetic (Potoloho e Khutšoane)
Nakong ea potoloho e khuts'oane (mohlala, phase-to-phase kapa phase-to-ground), matla a khoheli a phahameng a hona joale a hula plunger ea solenoid hang-hang, a lokolla mochine oa latch ka har'a milliseconds-ho khaola hona joale phoso pele ho senyeha ha mocheso.
Melemo ea lihlahisoa
★ Mmele le Sekoahelo:
Fiber-glass polyester resin e sebelisitsoe e le 'mele le lisebelisoa tsa sekoaelo ho latela EN 60512-20-2 standard. Thepa ena, e bitsoang BMC (Bulk Molding Compound) libukeng, e ratoa ka lebaka la boleng bo phahameng ba motlakase le mochini mme e khona ho hanela mocheso oa 160 ℃ ka ho tsoelang pele. Lisebelisoa tsa BMC ha li che ha li kopana le terata ka mocheso oa 960 ℃ ho latela IEC 695-2-1.
Bimetal: Bimetal ke thepa e nang le motsoako oa litšepe tse peli tse nang le li-coefficients tse fapaneng tsa ho atolosa khahlanong le mocheso. Mokelikeli o fetang ka har'a sekhechana o futhumatsa bimetal. Ka lebaka la phello ea mocheso ona. bimetal e kobeha ho lebisa ho poleiti e sa atoloheng haholo. Kaha mocheso o ntse o eketseha ha motlakase o feta ka har'a sekheo o ntse o eketseha, bimetal e futhumala haholoanyane 'me e kobeha haholoanyane. Ka tsela ena, e laola mokhoa oa ho bula ho bula sekhechana.

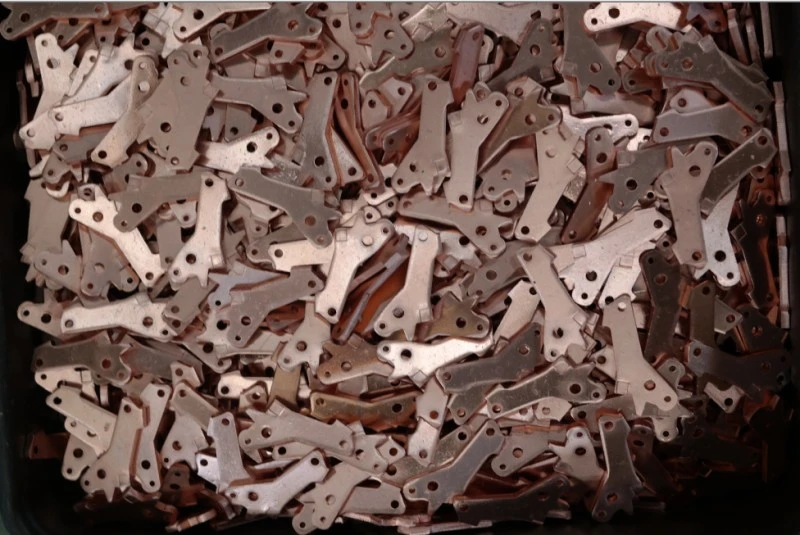

★ Mabitso:

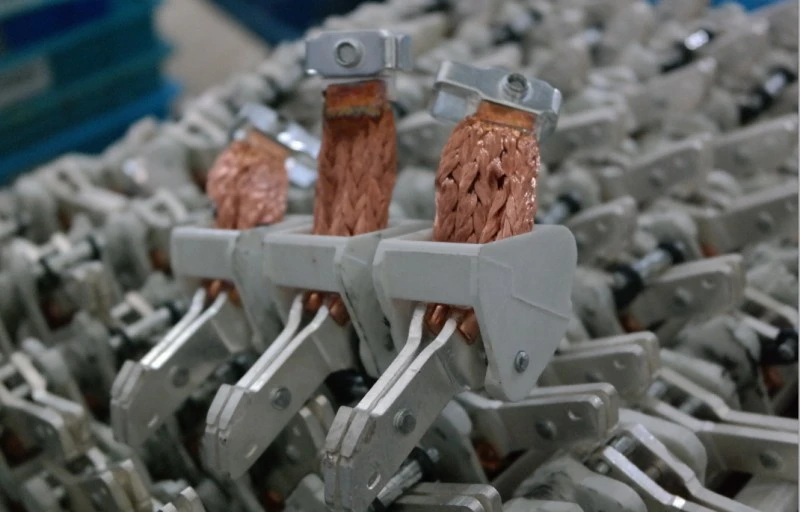

Contact alloy e ikemiselitse bakeng sa li-breakers ka ho nahana ka boleng ba hona joale le kaho e robehileng, graphite, nickel, wolfram alloy alloy e sebelisoa ka li-breakers Mabitso, a entsoeng ka li-alloys tsa silevera-graphite tse nang le sebopeho se boreleli, li sebelisoa ka mabitso a tsitsitseng (ka tlaase), li-contacts tsa silver wolfram, tse thata haholoanyane, li sebelisoa ho tsamaea. Sebopeho sa swaged se tiisitsoe ho likhokahano tse tsamaisang. Ka tsela ena, likhokahano tsa alloy tse thata le tse thata li na le sebaka ho likhokahano tse tsitsitseng sebakeng se seng le se seng sa ho koala.
Ka tsela ena, khanyetso e tlaase ka ho fetisisa e tiisitsoe.Ho kopana ho sisinyeha ho lokela ho ama kamano e tsitsitseng hantle haholo e le hore ho be le khanyetso e fokolang ea ho kopana. Leha ho le joalo, khatello e feteletseng ea khatello ea maikutlo e fella ka tšenyo ea mabitso ka nako e khuts'oane ho feta e tloaelehileng.Li-alloys tsa ho ikopanya li bohlokoa haholo bakeng sa ho koala ka mokhoa o phetseng hantle.
★ Arc Extinguisher Cell (Separator):
Li-separators li sebelisetsoa ho felisa arc e entsoeng nakong ea ts'ebetso ea sekhechana se sebetsang tlas'a matla. Le hoja ho tsamaisana ho arohane le ho kopana ho tsitsitseng, hona joale ho tsoela pele ho phalla pakeng tsa mabitso ka nakoana 'me sena se bitsoa arc. Arc ena e lokela ho fela ka nako e khutšoanyane haholo.
★ Ho felisoa ha Arc:
Arc e sutumelletsoa ho li-separators ka lebaka la matla a khoheli a thehiloeng ho potoloha arc. Ka tsela ena, arc ea atolosoa 'me e fetoha e mosesaane ebe e robeha lipakeng tsa lipoleiti tsa karohano (Setšoantšo-5). Ka lebaka la tšobotsi ea thepa e sebelisoang marakong a mahlakoreng a ba arohaneng, khase e tsoa ka lebaka la mocheso o phahameng o bakoang ke arc. Khase ena e na le phello ea bohlokoa ho timeleng ha arc.
Kopo
CDADA DAM1 Mofuta o tsitsitseng oa Molded Case Circuit Breaker (MCCB) o ts'eptjoa ho pholletsa le lisebelisoa tsa bohlokoa:
★ Indasteri: Litšilo tsa tšepe, sethala sa oli le khase, limela tsa lik'hemik'hale
★ Tlhokomelo ea bophelo: Liboto tse kholo tsa sepetlele le kabo e nyane
★ Lipalangoang: Letšoao la terene, tsamaiso ea thepa ea boema-fofane
★ Khoebo: Li-skyscrapers, litsi tsa data, litsi tsa mabenkele, litsi tsa likopano
★ Libaka tsa Sechaba: Liholo tsa boithabiso, mabala a lipapali, meaho ea mmuso
Melemo ea ho Kenya le Tlhokomelo
★ Kopanyo e Bonolo:
Kit e tloaelehileng e kenyelletsa maballo a libese, litšitiso tsa mekhahlelo, le li-hardware

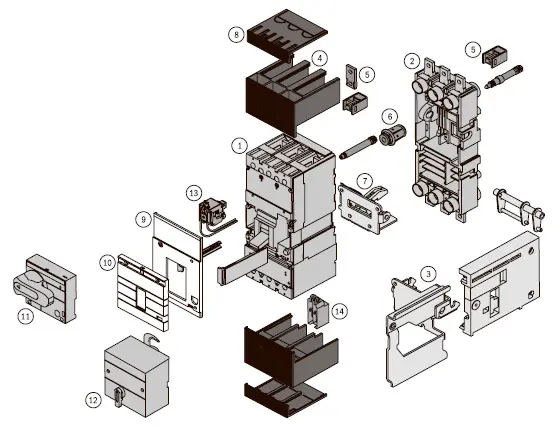

Lisebelisoa tsa boikhethelo: mabitso a alamo, li-shunt/undervoltage releases, mekhoa ea ts'ebetso ea motlakase

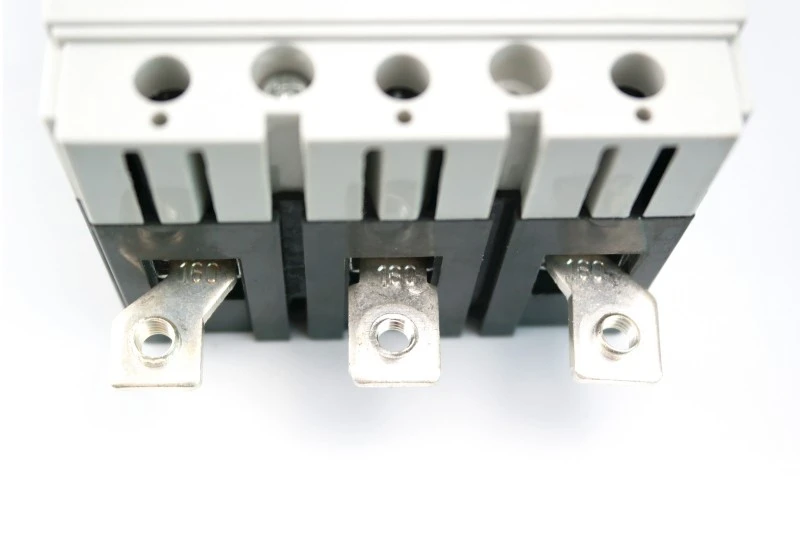

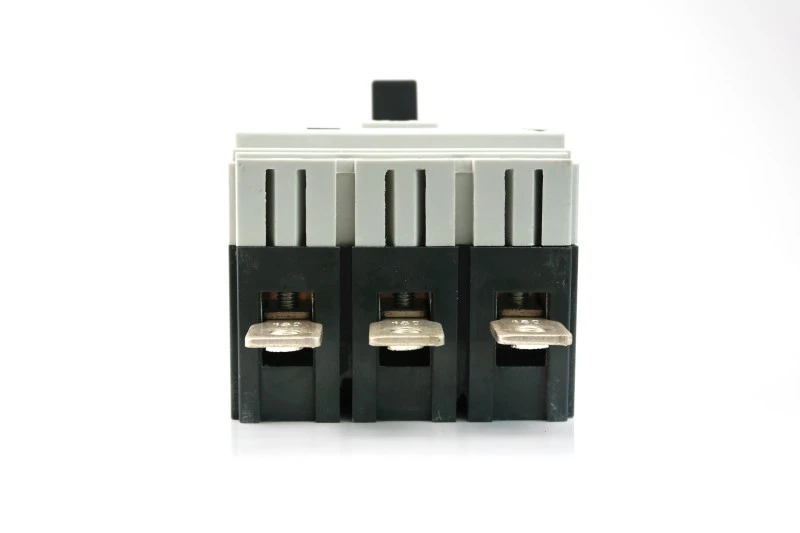

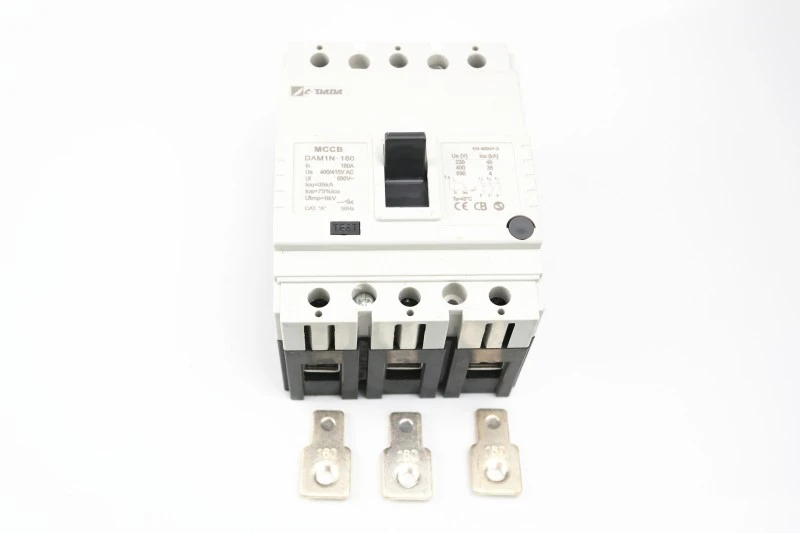

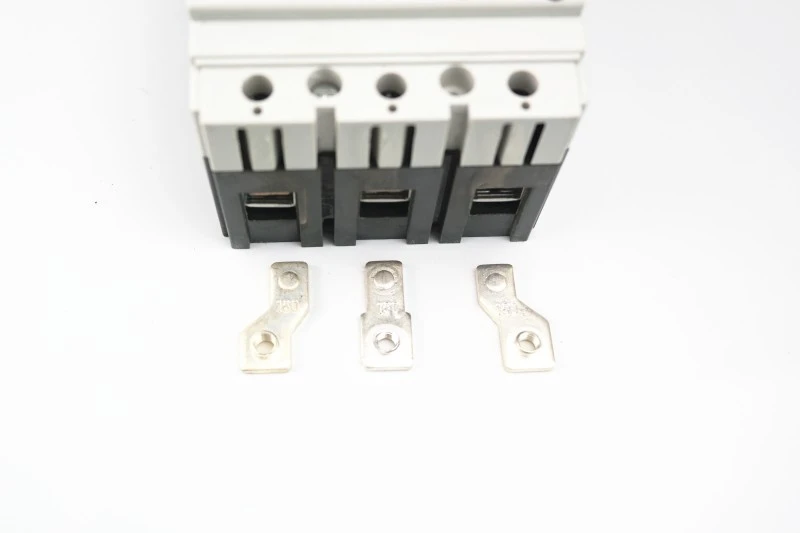

1) Hokela ka busbar e atolositsoeng (setšoantšo sa 1)

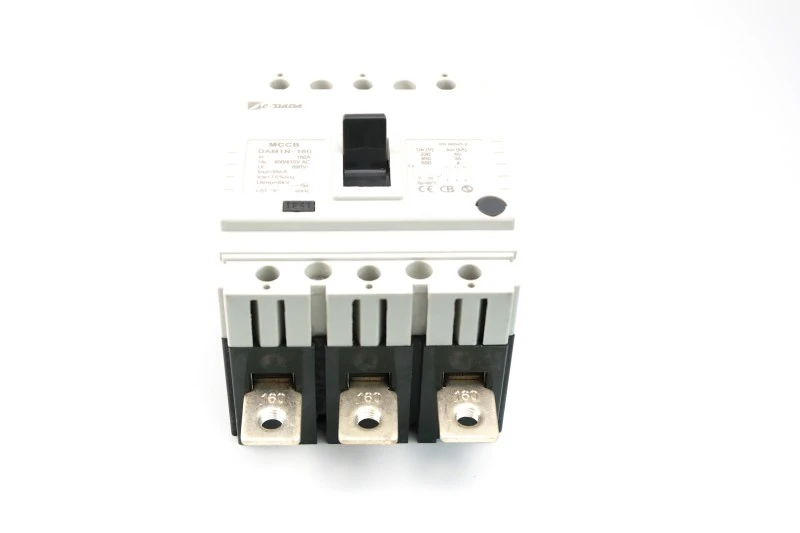

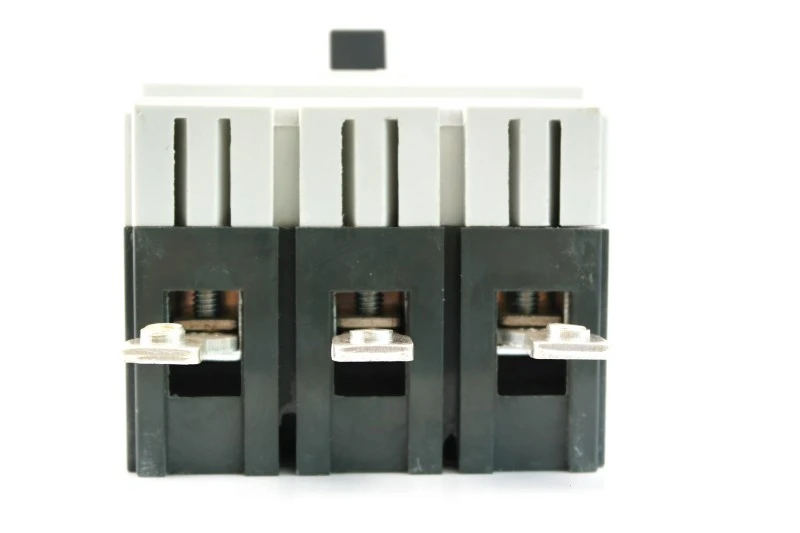

2) Hokela ka sethala sa seboholi(setšoantšo sa 2)

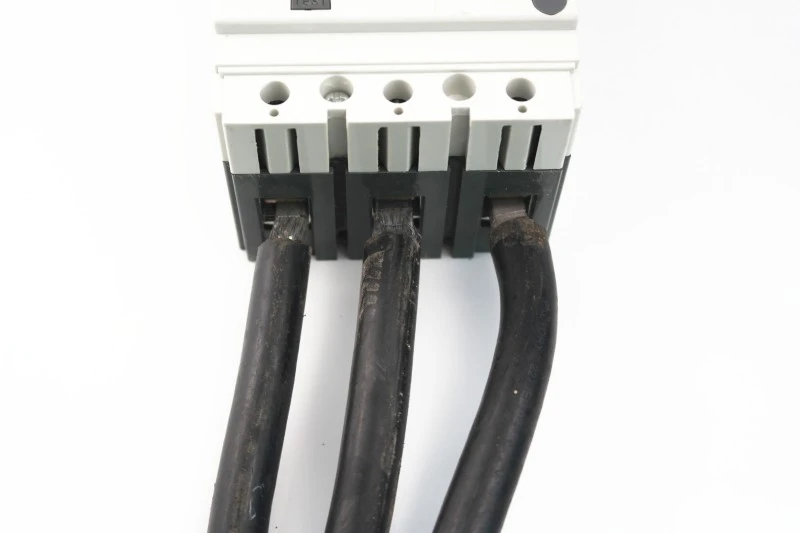

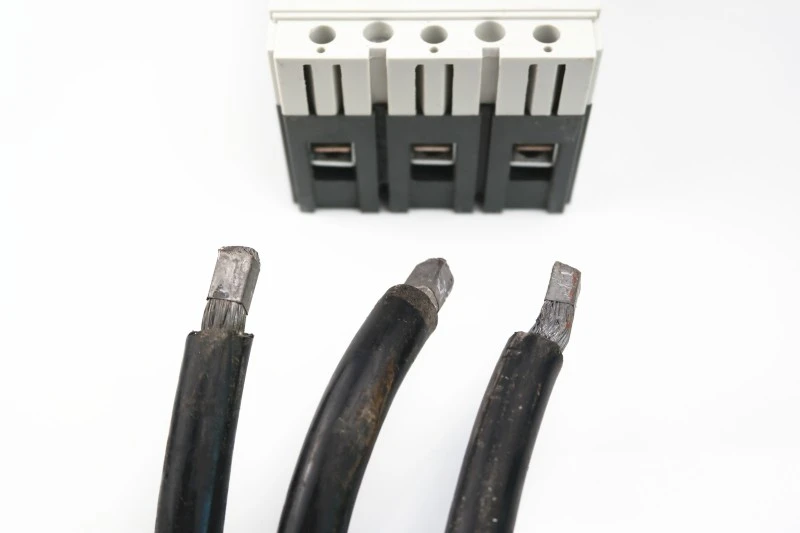

3) Hokela thapo ka kotloloho (setšoantšo sa 3) ntle le tšebeliso ea likhoele tsa cable.

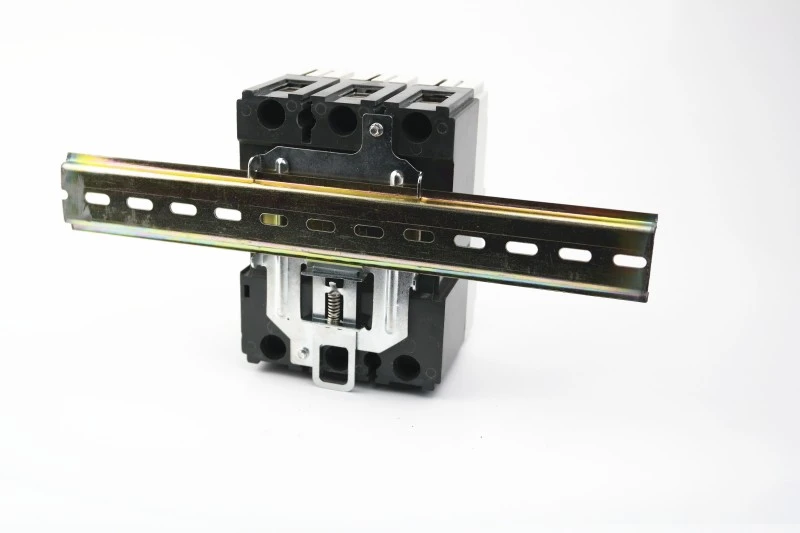

Ka thuso ea clamp e khethehileng, li-unit tsa 125 le 160 li ka kenngoa holim'a DIN-rail.

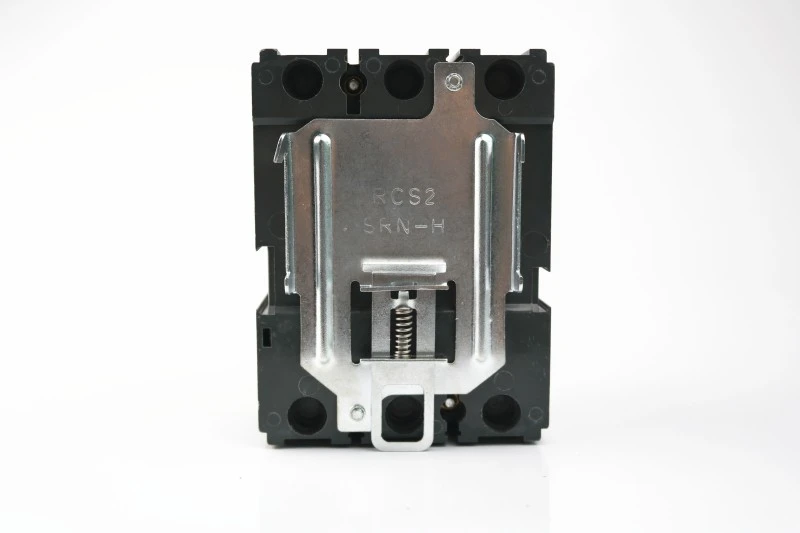

Seqhetso se nang le clamp

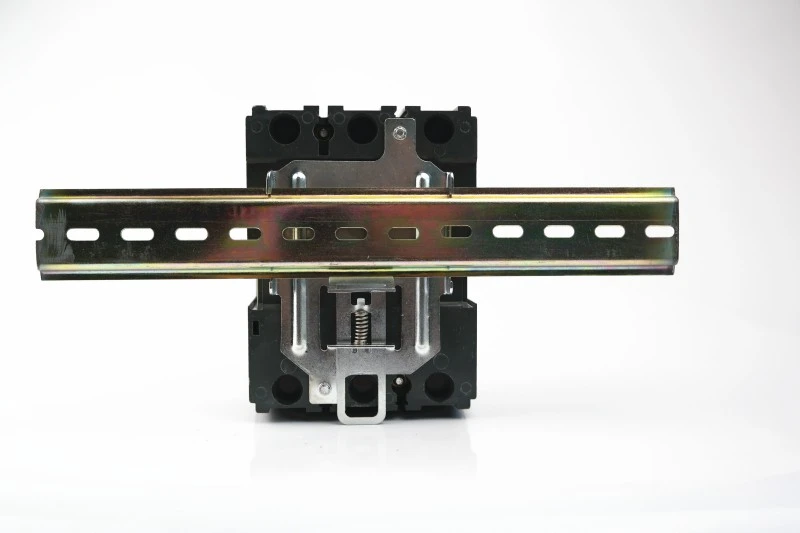

clamp e nang le seporo sa DIN
clamp e nang le seporo sa DIN
★ Moralo oa ho Boloka Sebaka:
10–20% e bobebe ebile e kopane ho feta mefuta e meng ea lapeng
E nolofalletsa boholo ba sebaka se kampetsoeng → thepa e tlase le litšenyehelo tsa thomello
★ Seta Botjha ha Mosebedisi:
Lets'oao le hlakileng la TRIP le thibela ho koala ha mahlo
"Click" e utloahalang e tiisa ho kopanela ka mokhoa o nepahetseng oa mochine
★ Ho Itokiselitse Bokamoso:
E tšehetsa li-plug-in le lisebelisoa tsa ho hula (bakeng sa mefuta e khethiloeng)
E lumellana le lisebelisoa tsa ho beha leihlo tse bohlale
Ke hobane'ng ha u khetha CDADA?

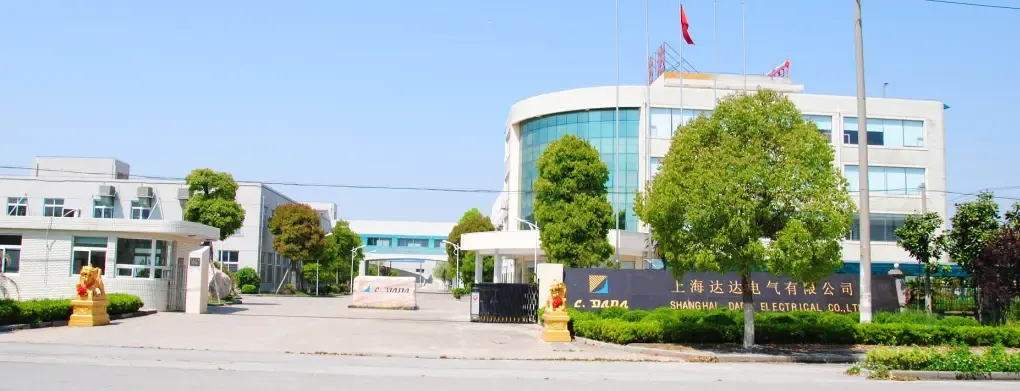

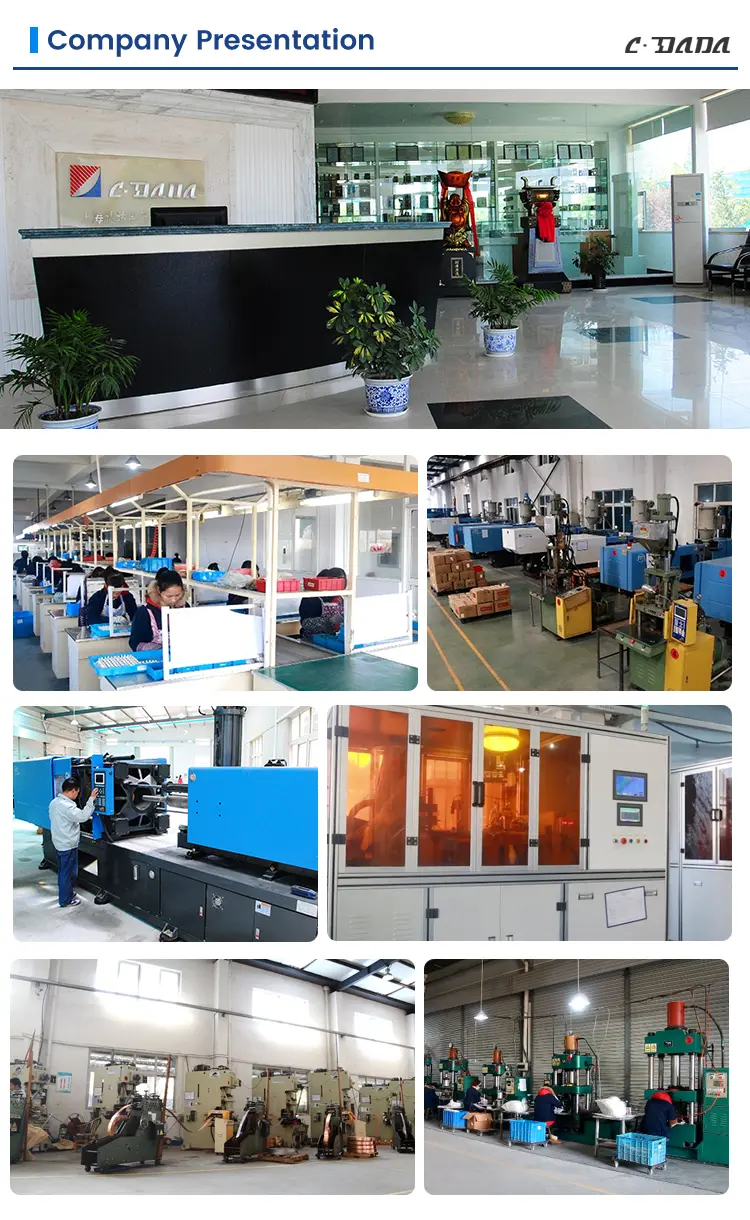

1. Re moetsi ea ka sehloohong oa lilemo tse 42+. Khamphani ea rona e thehiloe ka 1983, e hola ka potlako haholo nakong ea lilemo tse 40.

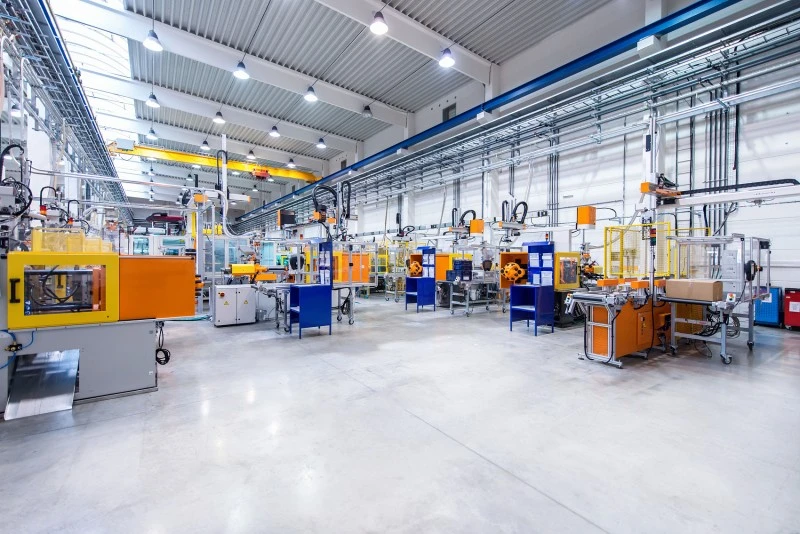

2. Sehlopha, se nang le lifeme tse 3, se na le sebaka sa tlhahiso sa 52,400m² mme se hirile basebetsi ba fetang 500. Re tsetetse li-yuan tse ka bang limilione tse leshome molemong oa ho holisa ts'ebetso ea rona le ho ntlafatsa lithupelo tsa rona.
3. Feme e hlahlobiloeng ke INTERTEK, DEKRA & GMC
4. Mabokose a matla a phahameng, tšireletso ea pallet, e ntle bakeng sa lipalangoang tse tsoang linaheng tse ling tsa maeto a malelele
Lipotso tse atisang ho botsoa (FAQ)
Q1: Na mofuta o tsitsitseng oa DAM1 oa Molded Case Circuit Breaker o ka behoa holim'a terene ea DIN?
A1: E—mehlala ea 125A le 160A e ka kengoa liporong tsa DIN ho sebelisoa clamp e khethehileng ea boikhethelo. Lintlha tse holimo li kentsoe ka phanele feela.
Q2: Letoto la DAM1 le tšoere litifikeiti life?
A2: E netefalitsoe ka CE, CB, ASTA, KEMA, SEMKO, le RoHS, ho netefatsa hore ho latela melao ea EU, Middle East, Asia Boroa-bochabela, le ho feta.
Q3: Ke seta joang bocha ka mor'a leeto?
A3: Ntlha ea pele, suthisa lepi ka botlalo ho OFF (o tla utloa ho tobetsa), ebe u e hulela ho ON. Le ka mohla u se ke ua e qobella ka kotloloho ho tloha TRIP ho ea ON.
Q4: Na lisebelisoa tse thusang lia lumellana?
A4: E-li-alarmes, li-contacts tse thusang, li-shunt / undervoltage releases, le lisebelisoa tsa motlakase li ka eketsoa ntle le ho qhaqha.
Q5: Na DAM1 e loketse ho nkela li-breaker tsa khale sebaka?
A5: Ho joalo. Mokhoa oa eona o kopanetsoeng o lumella li-MCCB tsa lefa ka kotloloho liphanele tse ngata-ho boloka nako le litšenyehelo tsa ntlafatso.
