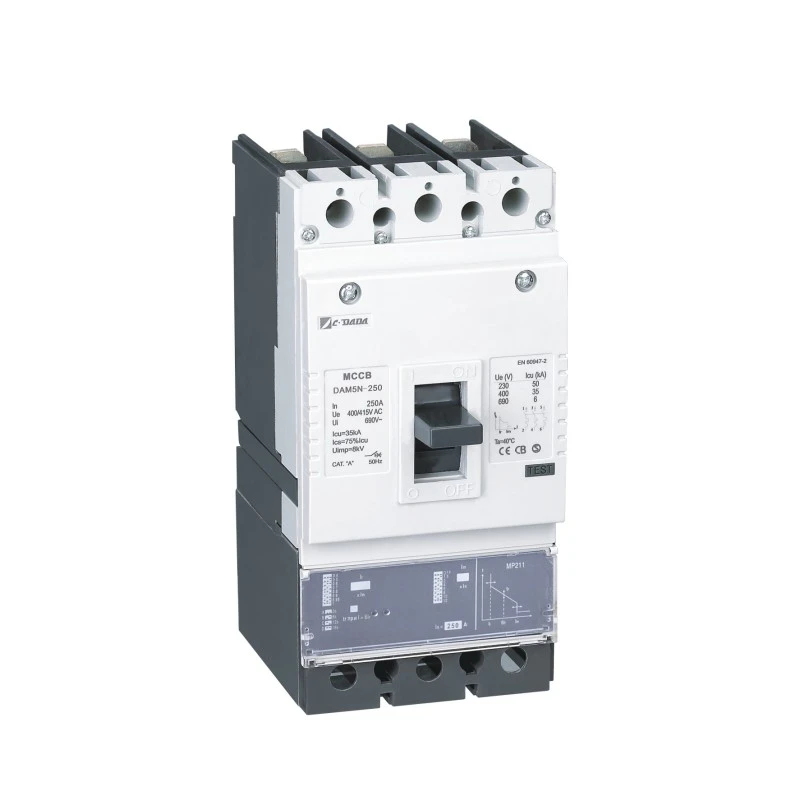

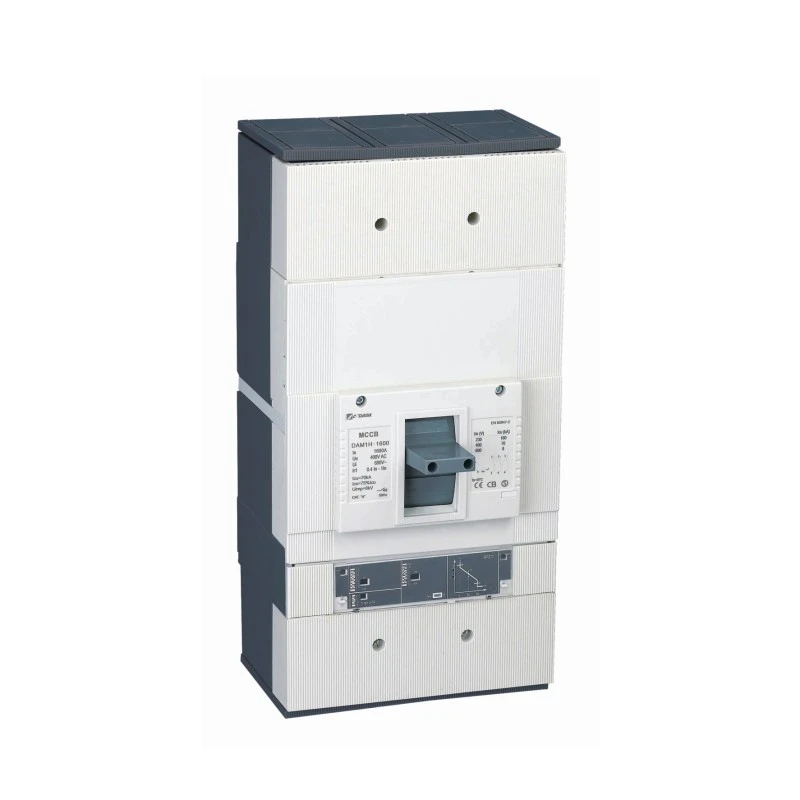

Mofuta oa Elektronike Molded Case Circuit Breaker

Bakeng sa litsamaiso tsa sejoale-joale tsa motlakase tse hlokang ho nepahala, bohlale, le ho ts'epahala, Mofuta oa Elektronike oa Molded Case Circuit Breaker ke Shanghai DADA Electric CO., LTD. e beha boemo bo bocha ts'ireletsong ea motlakase o tlase. Ho fapana le li-breaker-magnetic breaker tse tloaelehileng, MCCB ena e bohlale e sebelisa mochine oa maeto oa elektronike o thehiloeng ho microprocessor ho fana ka tšireletso e nepahetseng haholo, e ka khonehang ea ho itšireletsa khahlanong le ho fetoha ha mocheso oa tikoloho.

Ka litlhophiso tse feto-fetohang ho tloha 40% ho ea ho 100% Ho (thermal) le 1.5 × ho 12 × In (magnetic), e fana ka phetoho e ke keng ea lekanngoa bakeng sa tšebelisano e rarahaneng litsing tsa data, limela tsa indasteri, lipetlele, le mekhoa ea matla a tsosolositsoeng. E lekantsoe ho tloha ho 100A ho ea ho 1600A ho 400V / 415V, e kopanya moralo o kopanetsoeng le ts'ebetso e tsoetseng pele-'me e kenyelletsa ho hlōleha ho tsamaea ka ho toba nakong ea liphoso tse feteletseng, esita le haeba lisebelisoa tsa elektronike li hlōleha.

Litlhaloso Tse Bohlokoa

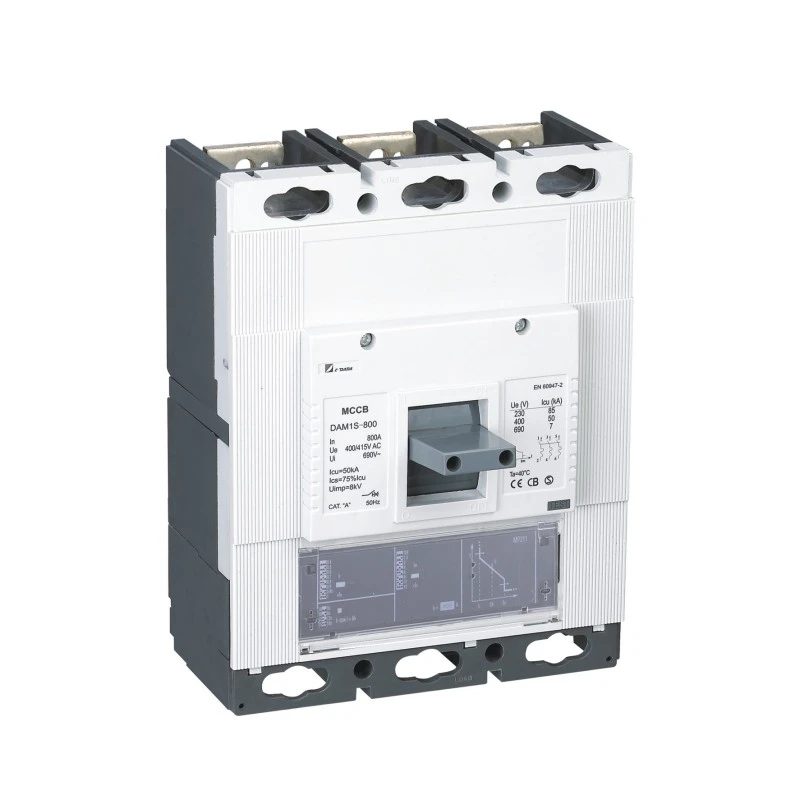

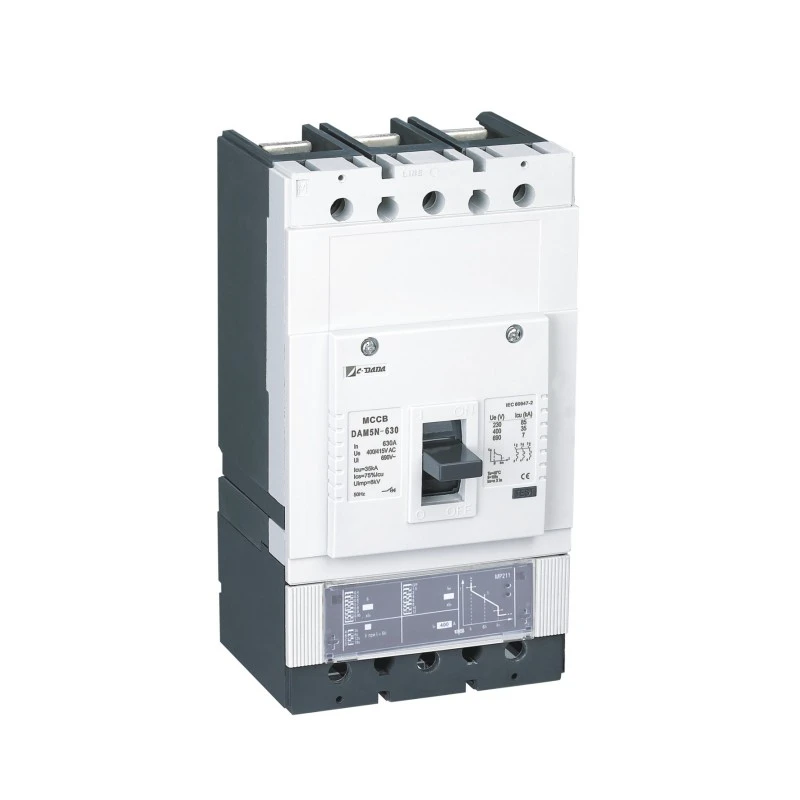

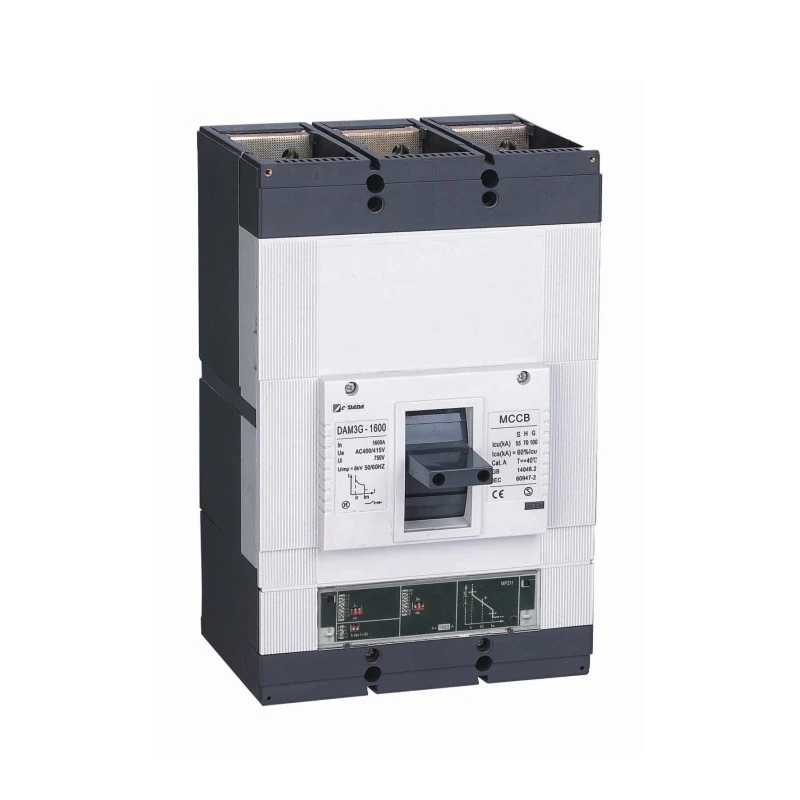

Mohlala: CDADA DAM2 / DE Series (Mofuta oa Elektronike Molded Case Circuit Breaker)

Mofuta: Electronic Molded Case Circuit Breaker

Lipalo: 3P / 4P

Rated Voltage (Ue): 400V / 415V AC

E lekantsoe Hajoale (Ka): 100A - 1600A

Setsi sa Leeto: Tokollo ea elektronike e thehiloeng ho Microprocessor

Phetoho ea Mocheso (Ir): 40% - 100% ea In

Phetoho ea Magnetic (Im): 1.5× - 12× In

Melemo

★ Ka bophara:100A ho isa ho 1600A(AC)

★ litekanyo tse Compact

★ Phetoho e feto-fetohang ea mocheso (40-100%)Ka.

★ Phethahatso ea makenete e feto-fetohang(1.5-12times)In.

★ Tokisetso ea konopo ea ho sutumelletsa leetong.

★ Arola mabitso a mantlha le arcing

★ Mefuta e mengata ea lisebelisoa.

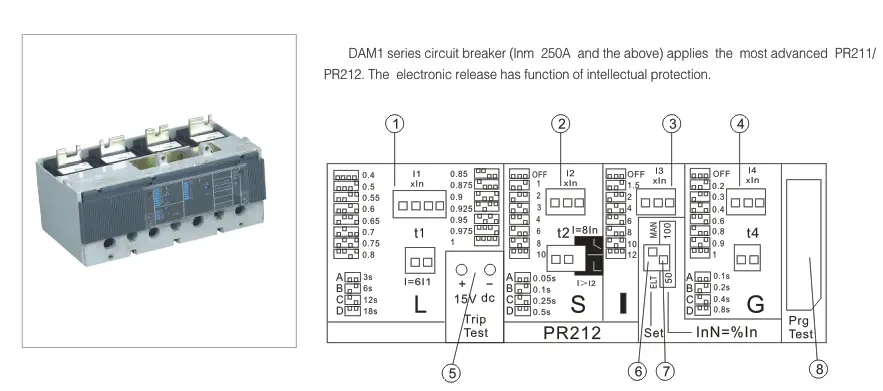

Mokokotlo oa sebopeho sa elektronike

Litekanyetso tsa motlakase

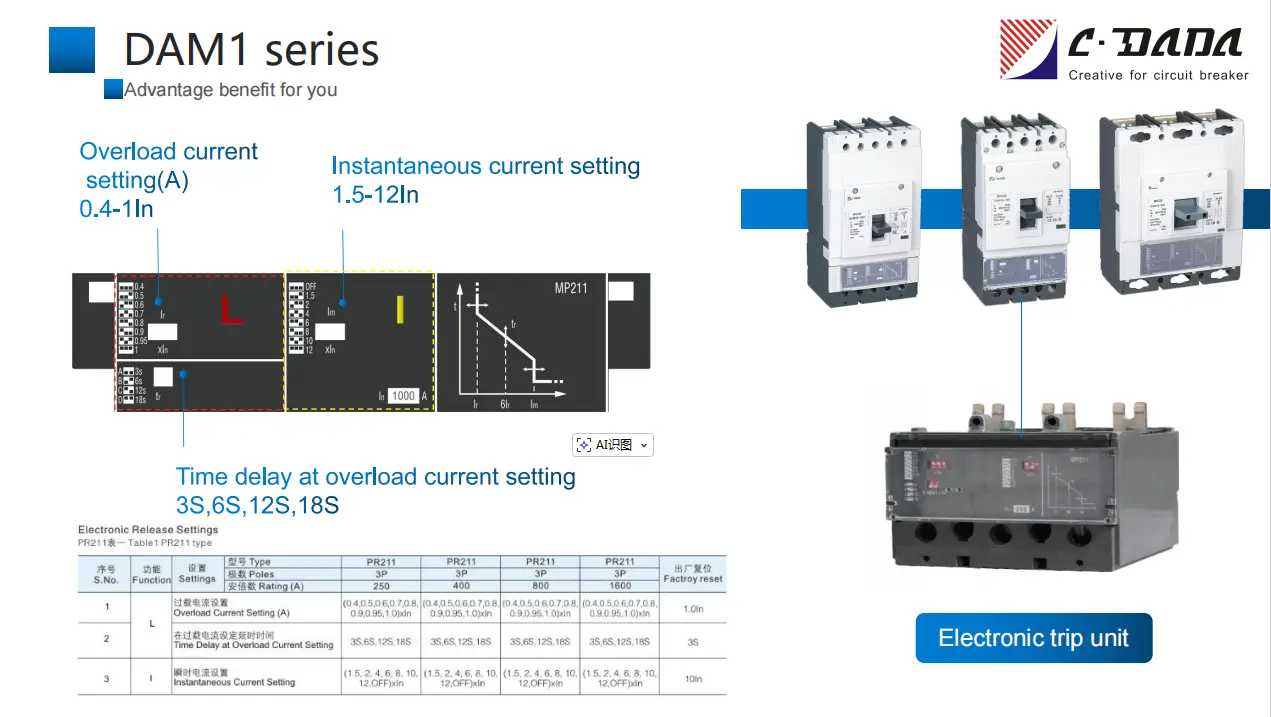

Lethathamo la 1 PR211 mofuta

S.No.

Mosebetsi

Litlhophiso

Mofuta

PR211

PR211

PR211

PR211

Khutlisetsa fektheri bocha

Lipalo

3P

3P

3P

3P

Lintlha (A)

250

400

800

1600

1

L

Litlhophiso tsa Hona Joale tse Tlatsehang (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

1.0Ho

2

Nako ea ho lieha ho tlhophiso ea hona joale ea Overload

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Boemo ba Hona Joale Hanghang

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

10Ho

Lethathamo la 2 PR212 mofuta

S.No.

Mosebetsi

Litlhophiso

Mofuta

PR212

PR212

PR212

PR212

Khutlisetsa fektheri bocha

Lipalo

3P

3P

3P

3P

Lintlha (A)

250

400/630

800

1600

1

L

Litlhophiso tsa Hona Joale tse Tlatsehang (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

1.0Ho

2

Nako ea ho lieha ho tlhophiso ea hona joale ea Overload

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Khutšoane - Setlhophiso sa Hona Joale Potoloho (A)

(1, 2, 3, 4, 6, 8, 10, TSOHLE)xIn

(1, 2, 3, 4, 6, 8, 10, TSOHLE)xIn

(1, 2, 3, 4, 6, 8, 10, TSOHLE)xIn

(1, 2, 3, 4, 6, 8, 10, TSOHLE)xIn

6Ho

4

Nako ea ho lieha ho Setting ea Hona Joale ea Potoloho e Khutšoane

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Boemo ba Hona Joale Hanghang

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

10Ho

6

G

Ground Fault Setting (A)

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

1.0Ho

7

Nako ea ho lieha ho Setting ea Phoso ea Ground

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

Khetho ea li-parameter tsa motlakase kapa tsa elektroniki tse behiloeng

SET SET (ho fetola ELT/MAN)

9

E sebelisetsoa ho beha li-parameter tsa dip switch ea line ea zero

InN=%Kena, fetola 50/100

10

Sokete bakeng sa sesebelisoa sa ho lekanya khokahano

Panel socket

Hobaneng u Khetha CDADA Electronic MCCB?

★ Bohlale ba 'Nete, Eseng Feela Boiketsetso
Microprocessor e tsoela pele ho sekaseka mefuta ea maqhubu a hona joale, e nolofalletsa nako e nepahetseng, nako e hlakileng, le ts'ireletso ea hang-hang - ntle le ho hoholeha ka lebaka la mocheso kapa botsofali.

★ Moqapi o sa Feleng-o Sireletsehileng
Le ha potoloho ea elektroniki e hloleha, latch e otlolohileng ea motlakase e netefatsa hore motho o tsamaea nakong ea lipotoloho tse khuts'oane tse matla - ho fihlela litlhoko tsa ts'ireletso ea ts'ireletso ea IEC 60947-2.

★ Khokahano e Phahameng
Mekhahlelo e pharalletseng ea litokiso (40–100% Ir, 1.5–12× Im) e lumella tšebelisano e phethahetseng le lisebelisoa tse holimo / tse tlase-ho fokotsa libaka tsa ho tima.

★ Lisebelisoa tsa Bopaki ba Bokamoso
E lumellana le li-module tsa boikhethelo tsa puisano (Modbus RTU, Profibus) bakeng sa ho kopanngoa le Mehaho ea Tsamaiso ea Mehaho (BMS) kapa marang-rang a bohlale.

★ Boleng ba Lefatše, Theko ea Tlholisano
E entsoe tlas'a ISO 9001 Shanghai, e nang le litifikeiti tsa machaba-e fana ka ts'ebetso ea boemo ba Europe ka katleho ea litšenyehelo tsa Asia.

★ Re na le sehlopha se inehetseng sa lienjineri tse 15 tse tsepamisitseng maikutlo ho nts'etsopele ea sehlahisoa, ntlafatso, le ho li etsa.

Likopo tse Ntle

Litsi tsa Boitsebiso: Thibela ho hloleha ho senyeha ka ho khetha ka mokhoa o nepahetseng

Lipetlele: Etsa bonnete ba hore ho na le matla a sa sitisoeng a tsamaiso ea bophelo

Industrial Automation: Hokahana le li-VFD, li-starter tse bonolo, le liroboto

Lipolasi tsa Solar/Moea: Ikamahanya le maemo a fapaneng a moloko

Meaho e Bohlale ea Khoebo: E nolofalletsa ho lekola matla ntle le limithara tse eketsehileng

Lipotso tse atisang ho botsoa (FAQ)

Q1: Ke eng e etsang hore MCCB ea elektroniki e fapane le ea makenete ea mocheso?

A1: Mofuta oa Elektronike oa Molded Case Circuit Breakers o sebelisa microprocessor ho hlahloba maeto a hona joale le a qalang ka mokhoa o nepahetseng haholo. Ha li amehe ke mocheso o teng, li fana ka mekhahlelo e pharalletseng ea litokiso, 'me li ka fana ka ho rengoa ha data - ho fapana le mefuta ea bimetal/solenoid-based thermal-magnetic.

Q2: Na 1600A elektroniki MCCB e fumaneha ka tlhophiso ea lipalo tse 4?

A2: E, li-MCCB tsohle tsa elektroniki tsa CDADA ho tloha ho 250A ho isa ho 1600A li fumaneha ka bobeli liphetolelong tsa 3P le 4P.

Q3: Ho etsahala'ng haeba yuniti ea leeto la elektronike e hlōleha nakong ea potoloho e khutšoanyane?

A3: The breaker e kenyelletsa "backup" ea mochini: nakong ea maqhubu a fosahetseng a feteletseng (> 12 × In), latch ea makenete e etsa hore ho buloe ka ho toba-ho netefatsa polokeho esita le ka lisebelisoa tsa elektronike ntle le marang-rang.

Q4: A na nka hlokomela litekanyetso tsa hajoale tsa nako ea nnete?

A4: E, yuniti ea maeto ea elektronike e bonts'a hang-hang, max, min, le karolelano ea hona joale ho feta lifensetere tsa nako e khethiloeng (mohlala, 24h), e sebetsang bakeng sa tsamaiso ea matla.

Q5: Ke hobane'ng ha u khetha CDADA ho feta mefuta e meng e bohlale ea MCCB?

A5: CDADA e fana ka:

● Ho feto-fetoha ha 'nete ka mekhahlelo e 'meli (bahlolisani ba bangata ba lekanyelitse Im ho ≤10×)

● Fail-safe mechanical backup (ha se li-MCCB tsohle tsa “electronic” tse nang le sena)

● Saese e kopaneng—e lumellana le liphanele tsa khale ntle le ho fetoloa

● Setifikeiti se matla sa lefats'e (ASTA, KEMA, CE)

● Litheko tse lumellanang le OEM ka tšehetso ea tekheniki ka Senyesemane
