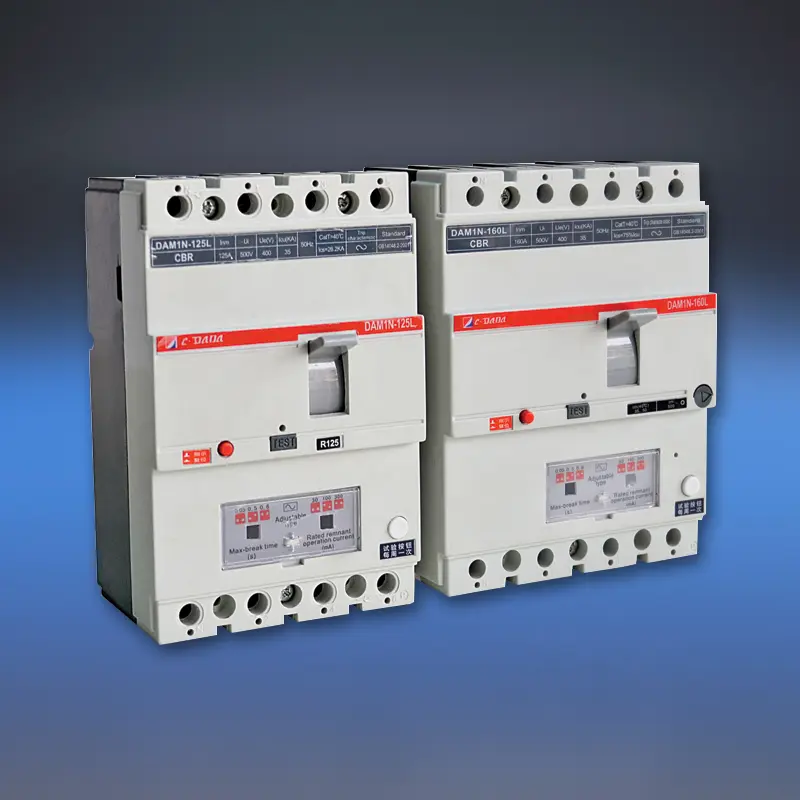

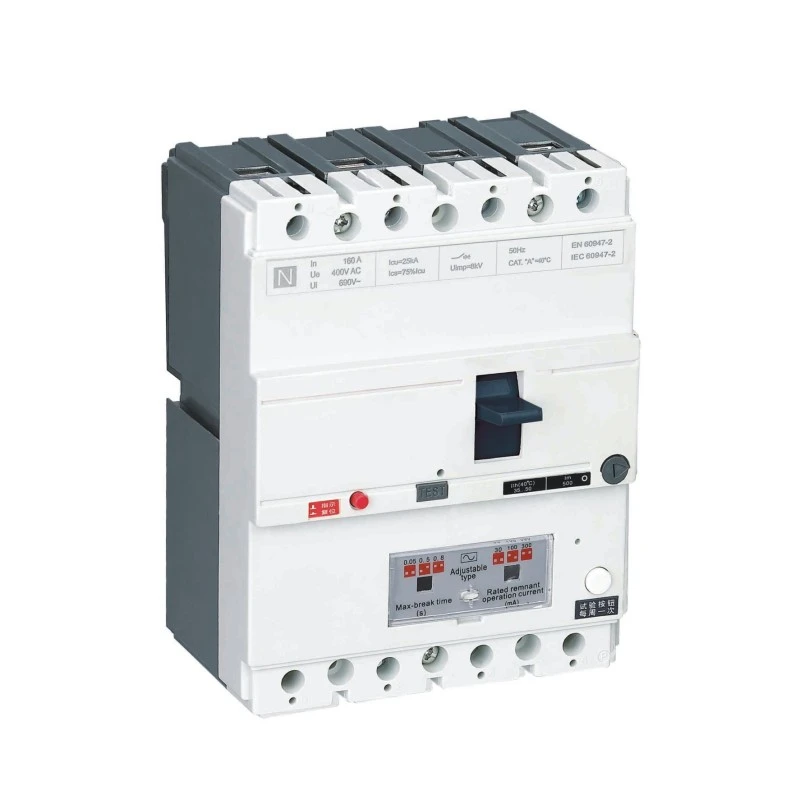

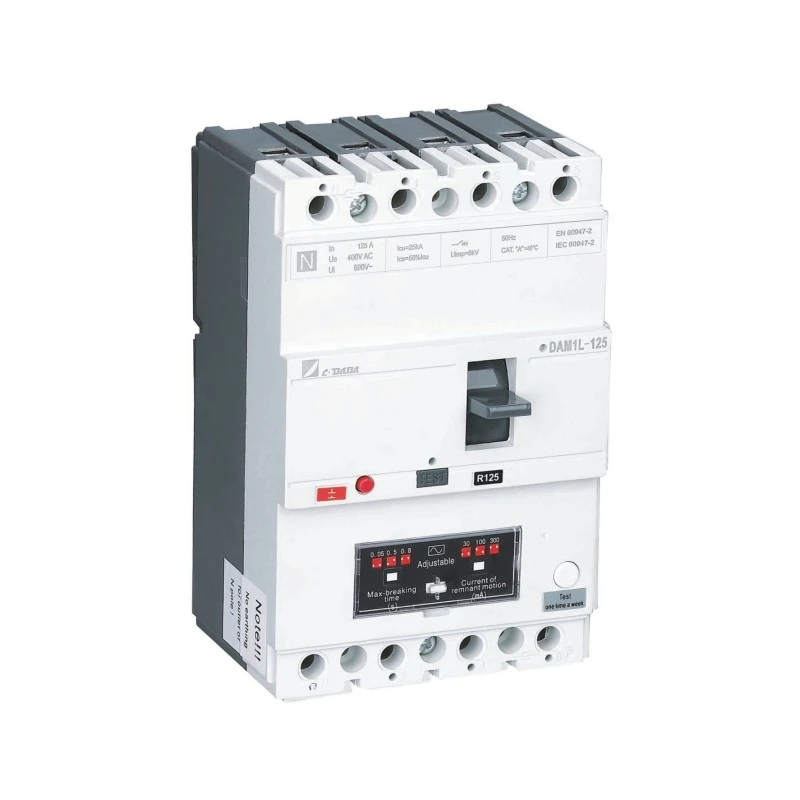

MCCB e nang le Tšireletso ea Leakage

Ntlafatsa polokeho ea motlakase ho feta moroalo o mongata le ts'ireletso ea potoloho e khuts'oane ka CDADA DAM1L Series MCCB e nang le Ts'ireletso ea Leakage e kopantsoeng e bopehileng ea sekhechana sa potoloho se nang le ts'ebetso ea masala a hahelletsoeng ka hare (RCD/ELCB). E entsoe ke moetsi oa setsebi Shanghai DADA Electric CO., LTD ho ea ka litekanyetso tsa machaba, ho lutla hona ha MCCB 4P ho kopanya kabo ea matla a ts'ebetso e phahameng le ho lemoha liphoso tsa fatše tse pholosang bophelo le ho pholosa mollo.

E lekantsoe ho tloha ho 10A ho ea ho 500A ho 400V / 415V, e fana ka ts'ebetso ea masala e feto-fetohang (30mA-1000mA) le ho lieha ha nako ea boikhethelo-ho nolofalletsa tšireletso e lokiselitsoeng bakeng sa polokeho ea botho (≤30mA) kapa thibelo ea mollo (100mA-500mA +). Ka lisebelisoa tsa elektroniki tse nang le mekhahlelo e mengata, e ntse e sebetsa le haeba karolo e le 'ngoe e hloleha kapa motlakase o theohela ho 50V, ho netefatsa ts'epo e ke keng ea lekanngoa meahong ea bohlokoa joalo ka lithanele, libaka tse phahameng, libaka tsa lipalangoang le limela tsa indasteri.

Litlhaloso Tse Bohlokoa

Mohlala: DAM1L Series - Earth Leakage MCCB (CBR-mofuta oa MCCB)

Lipalo: 4P (e tloaelehileng; 3P e fumaneha ka kopo)

E lekantsoe Hajoale (Ka): 10A - 500A

Matla a lekantsoeng: 400V / 415V AC, 50Hz

Insulation Voltage (Ui): 400V (≤160A), 690V (>250A)

Litlhophiso tsa Masala a Hona Joale (I△n): 30mA, 100mA, 300mA, 500mA, 1000mA

Phetoho: Tokiso ea sebaka sa marang-rang ea I△n le nako ea leeto (hang-hang kapa e liehile)

Mefuta ea ho Fetola Bokhoni:

Mofuta oa B: Motheo (Inm <100A)

Mofuta oa S: E tloaelehileng

Mofuta oa H: Ho robeha holimo (> 160A)

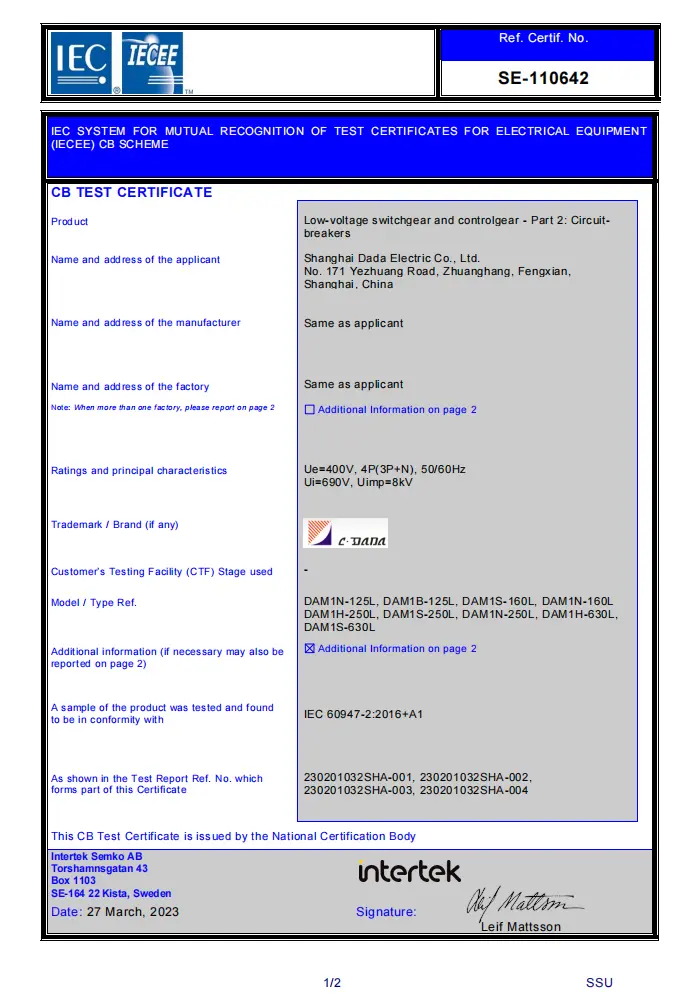

Setifikeiti: CE, CB, SEMKO

Likarolo tsa Bohlokoa:

★ Multi-phase powered RCD circuit → e sebetsa ho fihlela ho 50V

★ Arola mabitso a mantlha & arcing

★ Konopo ea teko ea ho sutumelletsa leetong

★ Boemo ba makenete bo feto-fetohang (0.8–1.0×In)

★ Matla a EMI / RFI a khahlanong le tšitiso

★ Lethathamo le felletseng la lisebelisoa: leeto la shunt, mabitso a thusang / alamo, sephethephethe sa rotary

Letlapa la lintlha tsa tekheniki

Earth-Leakage Circuit Breakers(ELCB)
Mohlala			DAM1-125L			DAM1-160L
Ho roba Khoutu ea Bokhoni			B	N	S	B	N	S
E fanoe ka tekanyo ea Hona Joale ea boholo ba Frame- Inm (A)			125A			160A
E Fanoe ha Hona Joale(40,50 kapa 55℃) (A)			10 - 12,5 - 16 - 20 - 25 - 32(30) - 40 - 50 - 63(60) - 80 - 100 - 125A			10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A
Ui (V)			690V			690V
Ue (V)			400V			400/415V
Nomoro ea Pole			4P			4P
Icu (KA)			25	35	50	25	35	50
Ics(KA)			12.5	17.5	37.5	12.5	26.25	37.5
Icm(tlhōrō)/cos ф (KA)			40/0.3	73.5/0.25	105/0.25	41/0.3	73.5/0.25	110/0.25
(I△m)KA/cosф			9/0.5			19/0.5
Residual current threshold(mA)			100-300-500			100-300-500
Ho lieha ha nako(ms)			50-500-800			50-500-800
Uimp (V)			10000			8000
Thepa ea Dielectric (V)			2500			3000
sebaka sa ho tsamaea (mm)			≤30/0			≤30/0
Mamello	Kakaretso ea Lipotoloho		8000			8000
	Bophelo ba Motlakase		1000			1000
	Bophelo ba Mechini		7000			7000
Sehlopha (EN 60947-2/IEC 60947-2)	Potoloho e ka sehloohong		A/0			A/0
	Potoloho e thusang		AC-15			AC-15
Tlas'a Phallo ea Voltage			√			√
Shunt Release			√			√
Kopana le Mothusi			√			√
Lebitso la Alamo			√			√
Kopana le Thuso le Alarm Contact			√			√
Tšoara Mokhoa oa Ts'ebetso			√			√
Mokhoa oa Ts'ebetso ea Motlakase			√			√
Sekoahelo sa terminal			√			√
Mokhahlelo o arohaneng			√			√
	W (mm)	3P	-			-
		4P	101			120
	L (mm)	3P	-			-
		4P	155			120
	H (mm)	3P	-			-
		4P	70			70
Boima ba 'mele	Mofuta o tsitsitseng oa 3P/4P		-			-
	Mofuta oa plug-in oa 3P/4P		-			-
	Etsa mofuta oa 3P/4P		-			-

Hobaneng u Khetha CDADA MCCB ka Tšireletso ea Leakage?

★ Tšireletso ea 'Nete e Kopanetsoeng

Ho fapana le li-module tsa RCD tsa tlatsetso, DAM1L e na le ts'ireletso ea ho lutla e hahelletsoeng ke fektheri-ho netefatsa tšebelisano e phethahetseng le ho felisa litaba tsa ho lumellana.

★ Multi-Phase Power bakeng sa RCD Circuit

Li-RCD tsa pele li ile tsa hlōleha haeba karolo e le 'ngoe e lahlehile. Moqapi oa CDADA o sebelisa mekhahlelo eohle ho matlafatsa lisebelisoa tsa elektroniki tsa ts'ireletso, ka hona e lula e sebetsa le nakong ea tahlehelo ea mokhahlelo kapa ho senyeha ho hoholo ha motlakase.

★ Lipakane tsa Tšireletso tse peli ho Sesebelisoa se le seng

◆ 30mA: E finyella litlhoko tsa IEC bakeng sa ts'ireletso ea motho ka mong

◆ 100mA–1000mA: E thibela mollo o senyang oa ho kenya letsoho ho tsoa mefokolong e menyenyane, e sa khaotseng ea fatše.

★ Field-Adjustable for Real-World Conditions

Boikutlo bo botle le ho lieha ha nako ho qoba ho khoptjoa ke tšitiso libakeng tse mongobo (mohlala, ho hlatsoa likoloi, mapolasi) ha u ntse u boloka tšireletso.

★ Tšepahalang ea Kereiti ea Liindasteri

Boemo bo phahameng ba ho robeha (H-mofuta), karohano e matla ea arc, le tšireletso ea IP20+ e etsa hore e tšoanelehe bakeng sa maemo a thata a khoebo le a indasteri.

★ Global Compliance, Boleng ba Sebaka

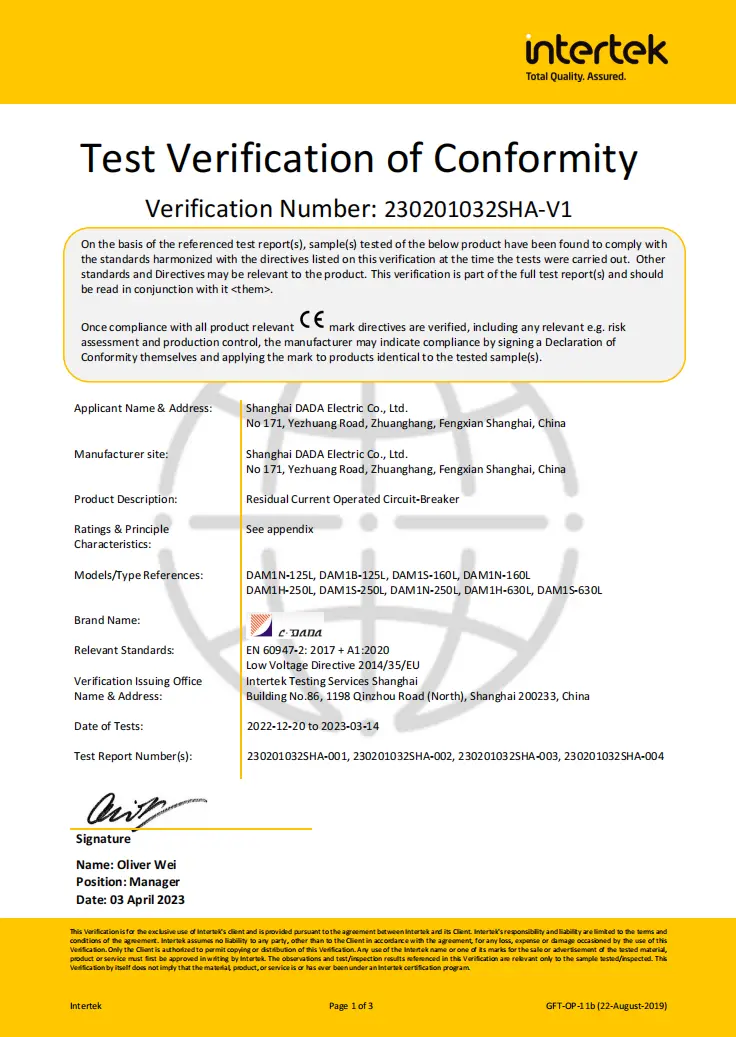

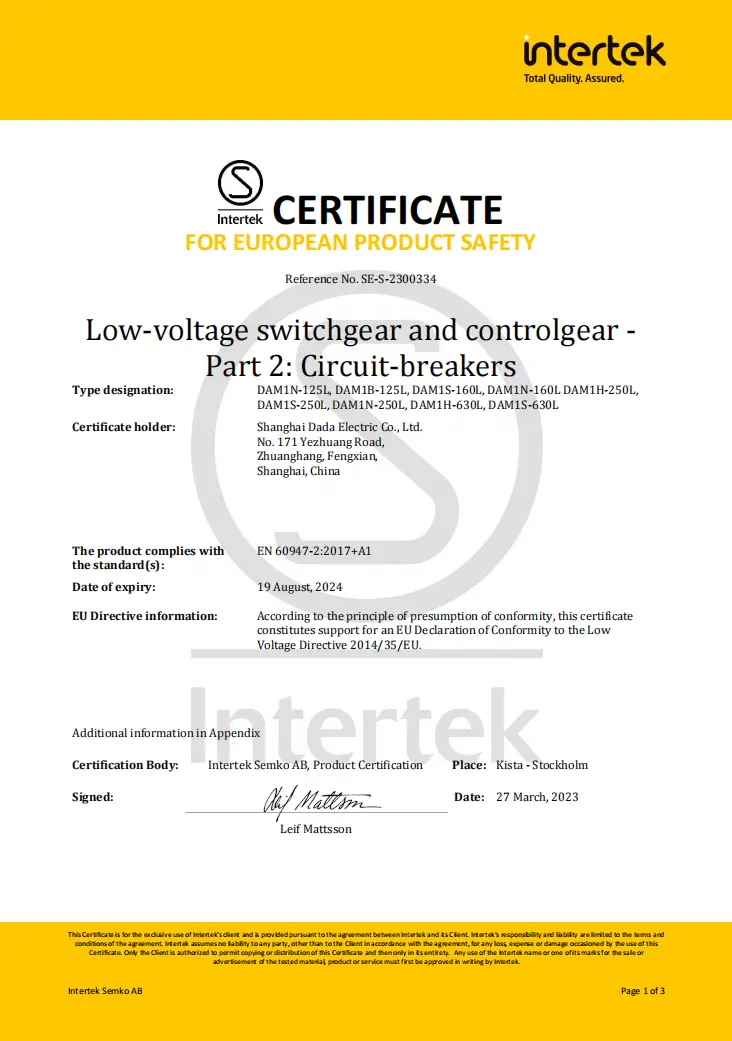

E netefalitsoe bakeng sa Europe (CE/CB), linaha tsa Nordic (SEMKO)—e loketseng merero ea ho romela thepa kantle ho naha—ka litheko tsa tlholisano ho tsoa ho moetsi ea tšepahalang oa China.

★ Setsi sa rona sa tlhahiso se tiisitsoe tlas'a ISO9001: 2015 Quality Management System.

Lisebelisoa tse Tloaelehileng

Bolulo bo Phahameng ka ho Fetisisa: Mokelli ea ka sehloohong kapa liphanele tsa fatše (300mA bakeng sa phokotso ea kotsi ea mollo)

Lithapo le Litsela tse tsamaeang ka tlas'a lefatše: Mehaho ea motheo e bohlokoa e hlokang hore ho sibolloe ho lutla ho sa sireletsehang

Lipetlele le Likolo: Tšireletso ea 30mA libakeng tse metsi (lab, matloana)

Indasteri Plants: Li-feeders tsa makoloi tse nang le leihlo la phoso ea fatše

Libaka tsa Kaho: Kabo ea nakoana ea matla ka tšireletso ea basebetsi

LBH

Q1: Ke phapang efe pakeng tsa MCCB e tloaelehileng le MCCB e nang le tšireletso ea ho lutla?

A1: MCCB e tloaelehileng e sireletsa feela khahlanong le boima bo feteletseng le li-circuits tse khutšoanyane. DAM1L e eketsa mokhoa o setseng oa ho lemoha (ho lutla ha lefatše) - ho khoptjoa ha hona joale ho lutla fatše (mohlala, ka motho kapa ho senya ho senyehileng), ho thibela ho tsosoa ha motlakase kapa mollo.

Q2: Na nka sebelisa 100A MCCB RCD bakeng sa tšireletso ea botho?

A2: Ha feela e setiloe ho 30mA. Hona joale e lekantsoeng (100A) e hlalosa matla a mojaro; sebaka se setseng (I△n) se hlalosa ts'ebetso ea polokeho. Bakeng sa ts'ireletso ea ts'ireletso, I△n e tlameha ho ba ≤30mA, ho sa tsotelehe In.

Q3: Ke hobane'ng ha potoloho ea RCD e hloka matla a mekhahlelo e mengata?

A3: Haeba e tsamaisoa ke mohato o le mong feela, ho hloleha ha karolo e le 'ngoe ho ka tima ts'ireletso ea ho lutla. Moqapi oa mekhahlelo e mengata oa CDADA o etsa bonnete ba hore RCD e lula e sebetsa esita le nakong ea tahlehelo ea mekhahlelo kapa matla a tlaase (ho fihlela ho 50V) -a bohlokoa bakeng sa ts'ireletso ea ts'ireletso.

Q4: Na 4P leakage MCCB e loketse lits'ebetso tsa TT kapa TN-S?

A4: E-e etselitsoe litsamaiso tsa TT, TN-S, le IT. Moralo oa 4P o roba mekhahlelo eohle ebile o sa nke lehlakore, o bohlokoa bakeng sa lits'ebetso tsa TT moo ho se nke lehlakore ho sa theoheng holimo.

Q5: Ke hobane'ng ha u khetha CDADA holim'a motsoako oa modular RCD + MCCB?

A5: CDADA DAM1L e fana ka:

● Melato e menyenyane (e kopantsoeng khahlanong le lisebelisoa tse peli)

● Khokahano e tiisitsoeng (ha ho kotsi e fapaneng)

● Theko e tlase & ho rarahana ha lithapo

● Ho tšepahala ho hoholo (yuniti e tiisitsoeng e le 'ngoe)

● Ho feto-fetoha ha setšeng ha ho khonehe ka li-RCD tse sa fetoheng
