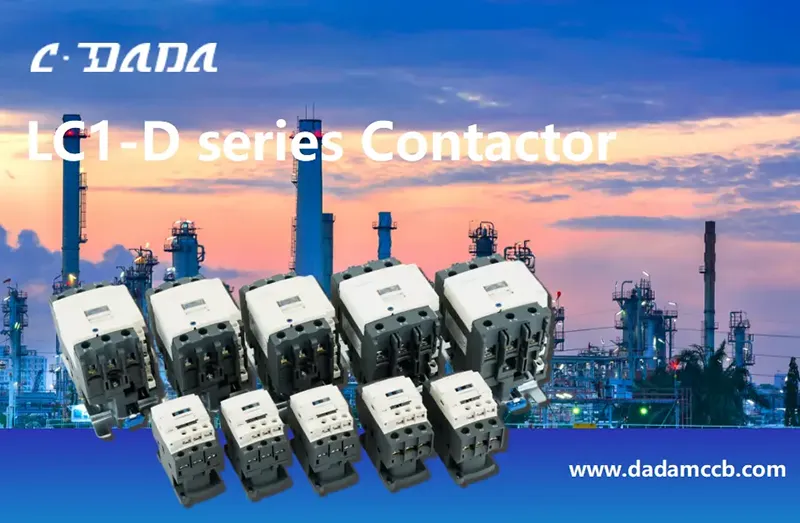

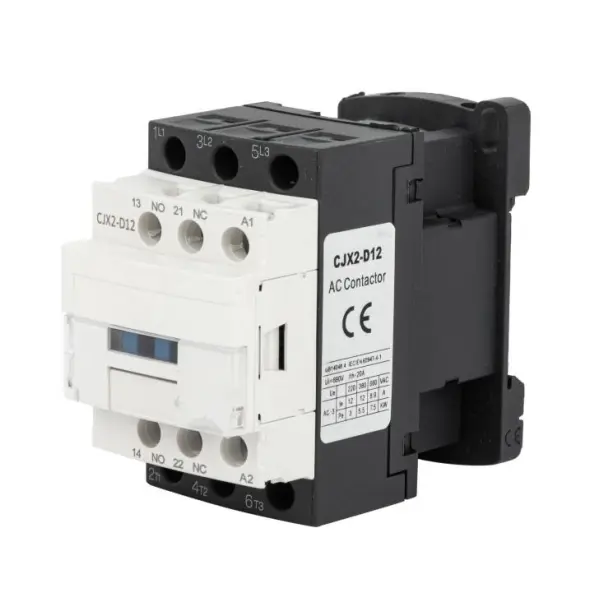

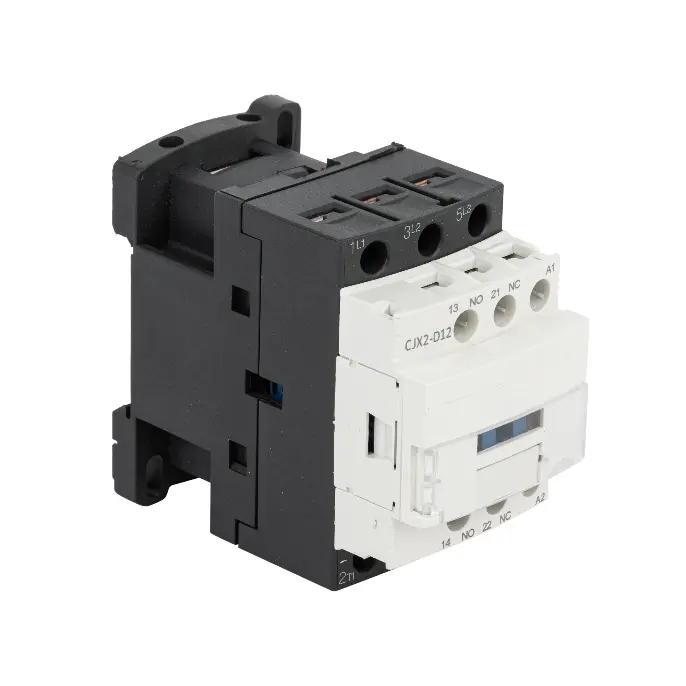

D Contactor

Model:LC1-D Series

Shanghai DADA Electric ke moetsi ea ka tšeptjoang 'me re na le lihlahisoa tsa rona, CDADA. D Contactor ea rona (LC1-D Series) ke IEC 60947-4-1 e netefalitsoeng, 3P / 4P, ho fihlela ho 620A, AC-3 / AC-4 e lekantsoe. Likhetho tse pharaletseng tsa li-coil voltage. Re khothaletsa sehlahisoa sena bakeng sa taolo ea makoloi le li-automation tsa indasteri, ikopanye le rona bakeng sa quote.

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

Taolo ea makoloi e tšepahalang le ho fetola matla ka CDADA LC1-D Series D Contactor sehokahanyi se sebetsang hantle sa AC se entsoeng ke Shanghai DADA Electric CO.,LTD ho kopana le litekanyetso tsa IEC/EN 60947-4-1. E hahiloe bakeng sa lits'ebetso tsa indasteri, tsa khoebo le tsa meralo, letoto la LC1-D le ts'ehetsa litlhophiso tsa lipalo tse 3 kapa tse 4 ka maqhubu a lekantsoeng ho tloha ho 9A ho isa ho 95A (ho fihla ho 620A ka mefuta e fapaneng ea mesebetsi e boima) 'me e laola li-motor tsa 3-phase squirrel-cage ho fihla ho 45kW (ho 15V-AC4) .

E na le likhokahano tse thusang tse tloaelehileng tsa 1NO+1NC, e hokahana ka mokhoa o ts'oanelang le li-relay tse ngata tsa mocheso bakeng sa ts'ireletso e felletseng ea enjene. Ka likhetho tsa li-coil tsa AC kapa tsa DC (24V-600V), AC-3 le AC-4 likarolo tsa ts'ebeliso, le moralo o tiileng o kentsoeng 690V insulation, CDADA D Contactor e fana ka ts'ebetso e ts'eptjoang ho lipotoloho tsa ho emisa khafetsa, lits'ebetso tsa conveyor, lipompo, li-compressor le li-unit tsa HVAC-esita le tikolohong e boima ea 40m ho fihla ho 20m° C.

D Contactor

Litlhaloso Tse Bohlokoa

Letoto: D Contactor

Lebitso: CDADA | Moetsi: Shanghai DADA Electric CO.,LTD

Tekanyetso: IEC/EN 60947-4-1

Setifikeiti: CE

Lipalo: 3P kapa 4P (e khethiloeng)

E Lekanyelitsoe Ts'ebetso ea Hona Joale (AC-3): 9A - 95A (ho fihla ho 620A sebakeng se atolositsoeng)

Taolo ea Matla a Enjene (AC-3):

380/415V: 4kW - 45kW

660/690V: ho fihla ho 45kW

Likarolo tsa Tšebeliso: AC-3 (li-motors tsa squirrel-cage), AC-4 (ho plugging & inching)

Rated Insulation Voltage: 690V AC

Ambient Mocheso: -5°C ho ea +40°C

Boima: ≤ 2000m

Ho phahamisa: Sefofane se otlolohileng ± 5 °, Sehlopha se Mount III

Mabitso a Thusang: 1NO + 1NC (e tloaelehileng mefuteng eohle)

Likhetho tsa Coil:

Likhoele tsa AC: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

Likhoele tsa DC: 24V, 36V, 48V, 110V, 220V

Letlapa la lintlha tsa tekheniki

Lintho		Mohlala	LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Pole			3/4	3/4	3/4	3/4	3/4
Kopana le Mothusi			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
E lekantsoe ka mokhoa o tloaelehileng oa ho futhumatsa hona joale (A) AC-1			20	20	30	40	50
E lekantsoe ts'ebetsong ea joale (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	AC-3 AC-4	1.5	2	3.8	4.4	7.5
Tekanyetso ea motlakase oa motlakase (V AC)			690	690	690	690	690
Matla a ho laoloa 3-mohato enjene ea lesaka (AC-3)	kW	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
Khoele ea AC(V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC coil(V)			24,36,48,110,220

Lintho		Mohlala	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Pole			3/4	3/4	3/4	3/4	3/4
Katse ea Potoloho e Thusang:AC-15,Ue=4 15V le=0.95A Ith=10A			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
E lekantsoe ka mokhoa o tloaelehileng oa ho futhumatsa hona joale (A) AC-1			60	80	80	110	110
E lekantsoe ts'ebetsong ea joale (A)	380/400V	AC-3 AC-4	40	50	65	80	95
	380/400V	AC-3 AC-4	18.5	24	28	37	44
	660/690V	AC-3 AC-4	34	39	42	49	49
	660/690V	AC-3 AC-4	9	12	14	17.3	21.3
Tekanyetso ea motlakase oa motlakase (V AC)			690	690	690	690	690
Matla a ho laoloa 3-mohato enjene ea lesaka (AC-3)	KW	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
Khoele ea AC(V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC coil(V)			24,36,48,110,220

Lintho			Mohlala		LC1-D115		LC1-D150		LC1-D170		LC1-D205		LC1-D245
Pole					3		3		3		3/4		3/4
E lekantsoe ka mokhoa o tloaelehileng oa ho futhumatsa hona joale (A) AC-1					200		200		200		275		280
E lekantsoe ts'ebetsong ea joale (A)	380/400V		AC-3 AC-4		115		150		170		205		245
					50		65		70		75		85
	660/690V		AC-3 AC-4		70		90		100		108		115
					25		32		35		38		40
Tekanyetso ea motlakase oa motlakase (V AC)					690		690		690		690		690
Matla a ho laoloa 3-mohato enjene ea lesaka (AC-3)	kW		380/415V AC 660/690V AC		55		75		75		90		110
					80		100		100		110		140
Khoele ea AC(V)					110,127,220,240,380,415,440,480,500,600
Lintho				Mohlala		LC1-D300		LC1-D410		LC1-D475		LC1-D620
Pole						3/4		3/4		3/4		3/4
E lekantsoe ka mokhoa o tloaelehileng oa ho futhumatsa hona joale (A) AC-1						360		430		580		850
E lekantsoe ts'ebetsong ea joale (A)		380/400V		AC-3 AC-4		300		410		475		620
						124		150		185		188
		660/690V		AC-3 AC-4		190		235		290		360
						60		72		85		170
Tekanyetso ea motlakase oa motlakase (V AC)						690		690		690		690
Matla a taolo ea 3-mohato enjene ea lesaka (AC-3)		kW		380/415V AC 660/690V AC		160		200		250		335
						220		280		330		450
Khoele ea AC(V)						110, 127,220,240,380,415,440,480,500,600

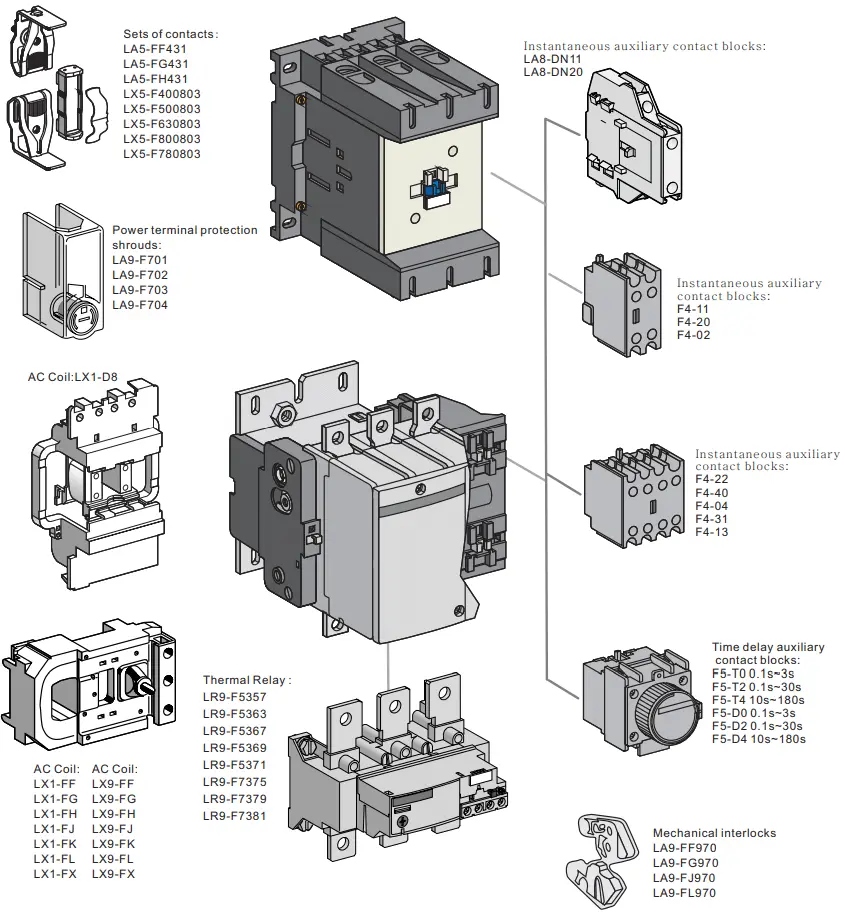

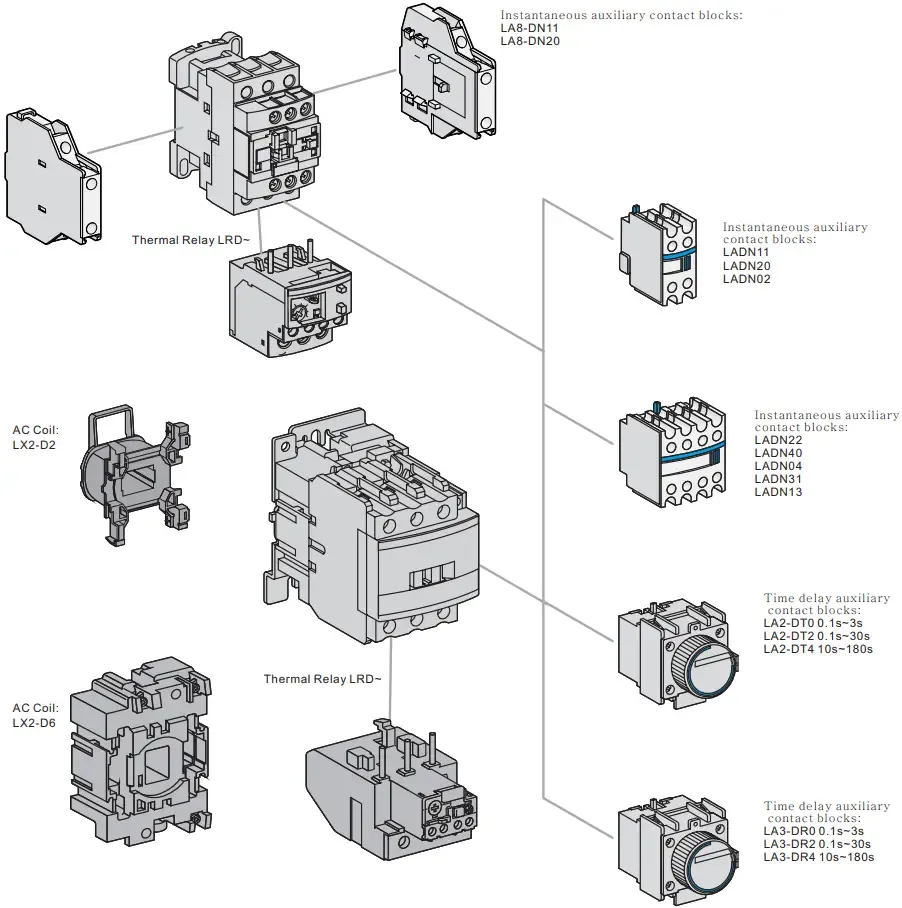

Lisebelisoa

D Contactor

Ke Hobane'ng ha U Khetha CDADA D Contactor?

★ Tšebeliso ea 'nete ea IEC

E etselitsoe le ho lekoa ho IEC/EN 60947-4-1-ho netefatsa kamohelo le ts'ebelisano lefatšeng ka bophara.

★ Full Motor Control Tharollo

Kopana le li-relay tsa CDADA tsa mocheso o mongata bakeng sa likopano tse felletseng tsa motor starter — overload + short-circuit + ho itšehla thajana.

★ Wide Voltage Flexibility

Khetha ho tloha ho 13 AC le 5 DC coil voltages — e loketseng merero ea lefats'e kapa liphanele tsa motlakase o kopaneng.

★ E Matla Bakeng sa Boikarabello bo Boima

E ts'ehetsa mosebetsi oa AC-4 (ho khutlela morao khafetsa / ho plugging) - e nepahetse bakeng sa li-cranes, lifti le li-conveyor.

★ Kopanyo ea plug-and-Play

Likhokahano tse thusang tse tloaelehileng tsa 1NO+1NC li etsa hore ho be bonolo ho hokahanya, ho fana ka matšoao, kapa maikutlo a PLC.

★ Tšepahalang ea Kereiti ea Liindasteri

E lekoa bakeng sa mamello e phahameng ea motlakase, khanyetso e tlase ea ho kopana, le khatello e tsitsitseng ea arc-ho fokotsa nako ea ho theoha.

★ Melemo ea rona ea bohlokoa ke: 1) Litifikeiti tse feletseng tsa machaba, 2) Bokhoni bo matla ba OEM / ODM, 3) Karo-karolelano e phahameng ea litšenyehelo, 4) Bokhoni bo ka tšeptjoang ba tlhahiso e kholo, 5) Boiphihlelo bo pharaletseng ba ho romela thepa.

D Contactor

★ Lihlahisoa tsa rona li romelloa ka katleho ho Asia Boroa-bochabela, Bochabela bo Hare, Amerika Boroa, Afrika, Europe, le linaha tsa CIS, ka ho tsepamisa maikutlo ho matla marakeng a Belt le Road.

D Contactor

Lisebelisoa tse Tloaelehileng

D Contactor Li-Motor Starters: Lipompo, li-fan, li-compressor, li-mixer

D Contactor Sistimi ea HVAC: Taolo ea Chiller & blower

D Contactor Industrial Automation: Lithapo tsa conveyor, mechini ea ho paka

D Contactor Taolo ea Kaho: Taolo ea lifti, libanka tsa mabone

D Contactor Matla le Metsi: Phekolo ea metsi a litšila, mekhoa ea ho nosetsa

Lipotso Tse Botsoang Khafetsa

Q1: "D Contactor" e bolela'ng?

A1: "D" e bua ka letoto la mabitso (LC1-D) le sebelisoang lefats'eng ka bophara bakeng sa sethala sena sa modular, se tloaelehileng sa AC contactor. Ha se sehlopha sa botekgeniki - empa se tsebahala haholo moahong oa liphanele bakeng sa ho lumellana ha eona le lisebelisoa tse joalo ka li-relay tse ngata le li-interlocks tsa mochini.

Q2: Phapano ke efe lipakeng tsa mosebetsi oa AC-3 le AC-4?

A2:

● AC-3: Ho qala / ho emisa ho tloaelehileng ha li-motors tsa squirrel-cage (mohlala, lipompo, li-fan). Khatello e tlase.

● AC-4: Ho phunya khafetsa, ho kenya li-inchi, kapa ho khutlisa morao (mohlala, li-cranes, hoist). Khatello e phahameng ea motlakase → e hloka likhokahano tse matla haholoanyane. → CDADA LC1-D e fuoe lintlha ka bobeli, e etsa hore e feto-fetohe.

Q3: Nka sebelisa contactor ena ntle le overload relay?

A3: Ha e khothalletsoe bakeng sa meroalo ea makoloi. The contactor feela fapoha matla-ha e sireletse khahlanong le overloads. Kamehla o kopane le mocheso oa motlakase kapa oa elektroniki bakeng sa polokeho ea makoloi.

Q4: Na liphetolelo tsa 4-pole lia fumaneha?

A4: ho! Mefuta eohle ea LC1-D e ts'ehetsa litlhophiso tsa 3P kapa 4P-e loketseng lits'ebetso tse feto-fetohang kapa lisebelisoa tse 4 tsa terata.

Q5: Ke hobane'ng ha khetha CDADA ho feta tse ling D-letoto contactors?

A5: CDADA e fana ka:

● Ho lumellana ha IEC 60947-4-1 ea 'nete le litlaleho tsa liteko

● Bophahamo ba motlakase oa khola (ho kenyeletsoa 415V, 480V, 600V bakeng sa ho romelloa kantle ho naha)

● Boleng bo lumellanang le likhokahano tsa silevera-alloy le li-arc chute

● Litheko tse lumellanang le OEM le ho fetola mehlala e potlakileng

● Litifikeiti tsa lefats'e (CE) le litokomane tsa Senyesemane
