6KA 10kA Sekhahla se Senyenyane sa Potoloho

ALF-63N/H letoto le phahameng la 6KA 10kA Miniature Circuit Breaker (MCB), e lumellana le maemo a IEC60898, MCB e na le tšobotsi ea ts'ebetso e ts'eptjoang, ts'ebetso e nepahetseng ea ts'ireletso, nako e khuts'oane ea ho lokolloa, le matla a phahameng a khefu, molumo o monyane hape. E sebelisoa haholo ka har'a le ho jara li-contactor, switchgear, le lisebelisoa tsa motlakase.

Ikopanye le CDADA 'me u re khethe re le moetsi oa hau, re ka fana ka litšebeletso tsa OEM/ODM.

Mokokotlo wa Sebopeho

Tlhaloso ea Setsebi

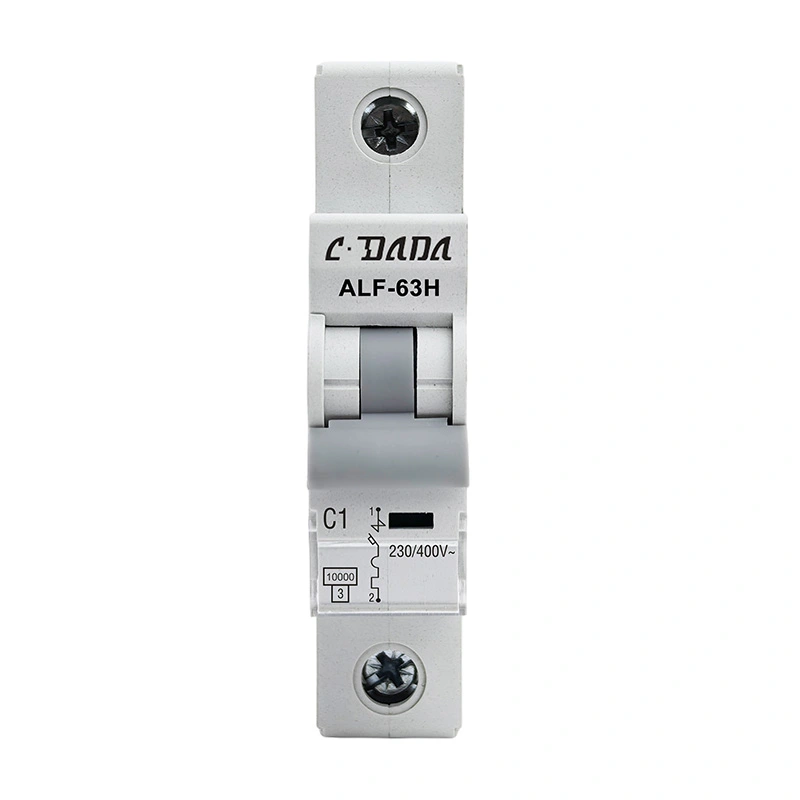

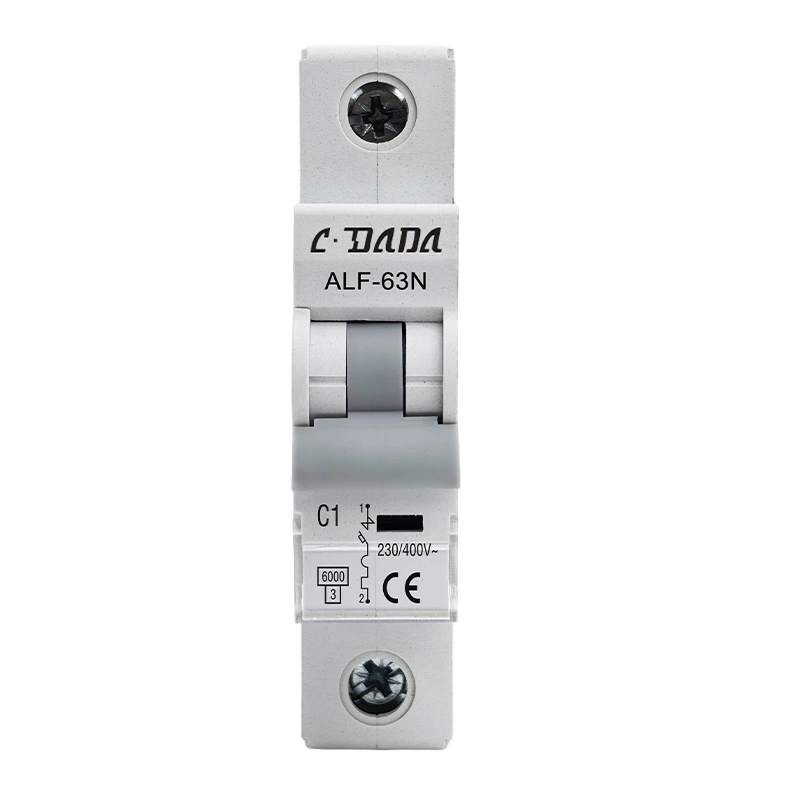

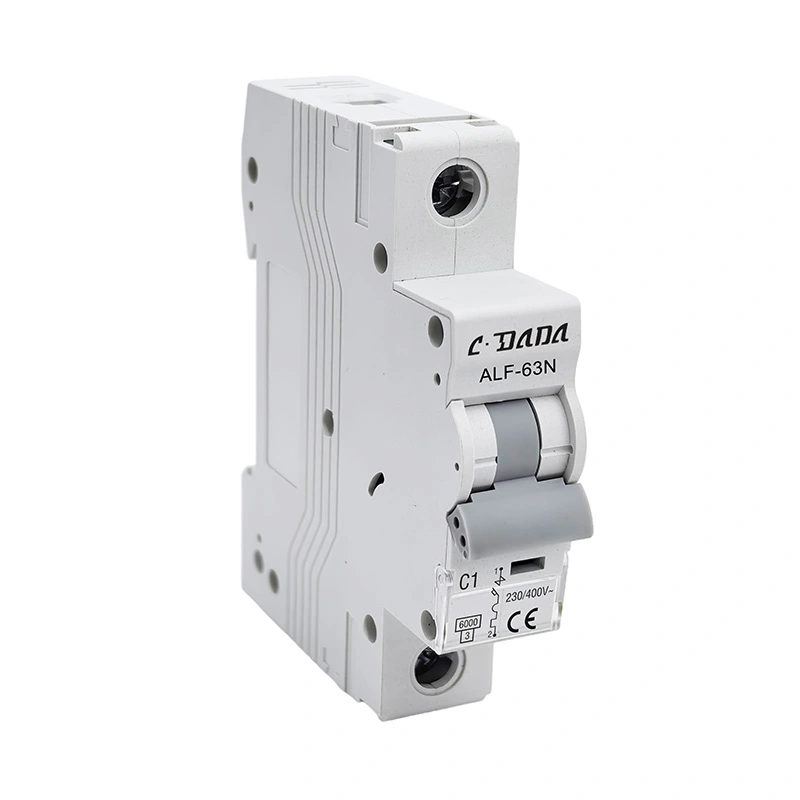

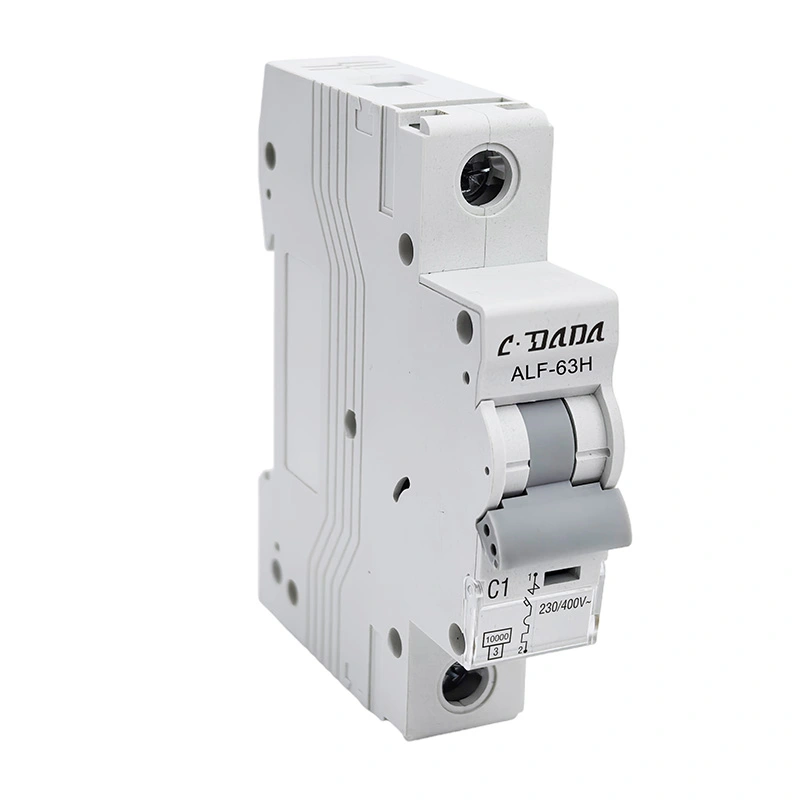

ALF-63N/H Series 6KA 10kA Miniature Circuit Breaker
Standard	EN/IEC60898-1
Ho robeha ha matla(kA)	6,10
Tshireletso	Khahlanong le overload le potoloho e khutšoanyane
E lekantsoe hajoale(A)In	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Matla a lekantsoeng(V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
E lekanyelitsoeng ho mamella motlakase oa Uimp(kV)	4
Tekanyetso ea motlakase oa motlakase oa Ui(V)	500
Khase e fokotsang matla	3
Thempereichara ea tikoloho(℃)	-25~+40,Mongobo o ka holimo ho 95%.
Moeli oa ts'ebetso ea mocheso	1.13xln Ha ho ho khoptjoa ka mor'a hora
	1.45xIn Ho Tsamaea nakong ea hora
Ts'ebetso ea Magnertic	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Palo ea lipalo	1P,1P+N,2P,3P,3P+N le 4P
Mofuta oa leeto	Thermal/magnetic release
Bokhoni ba terminal	16mm² e feto-fetoha kapa 25mm² e thata ho fihla ho lintlha tse 25A
	25mm² e feto-fetoha kapa 35mm² e thata ho tloha ho 32A ho isa ho 63A lintlha
Tekanyo ea ts'ireletso	IP20
Ho kenya	E hloella holim'a seporo sa 35mm DIN
Bophara	17.8mm ka palo

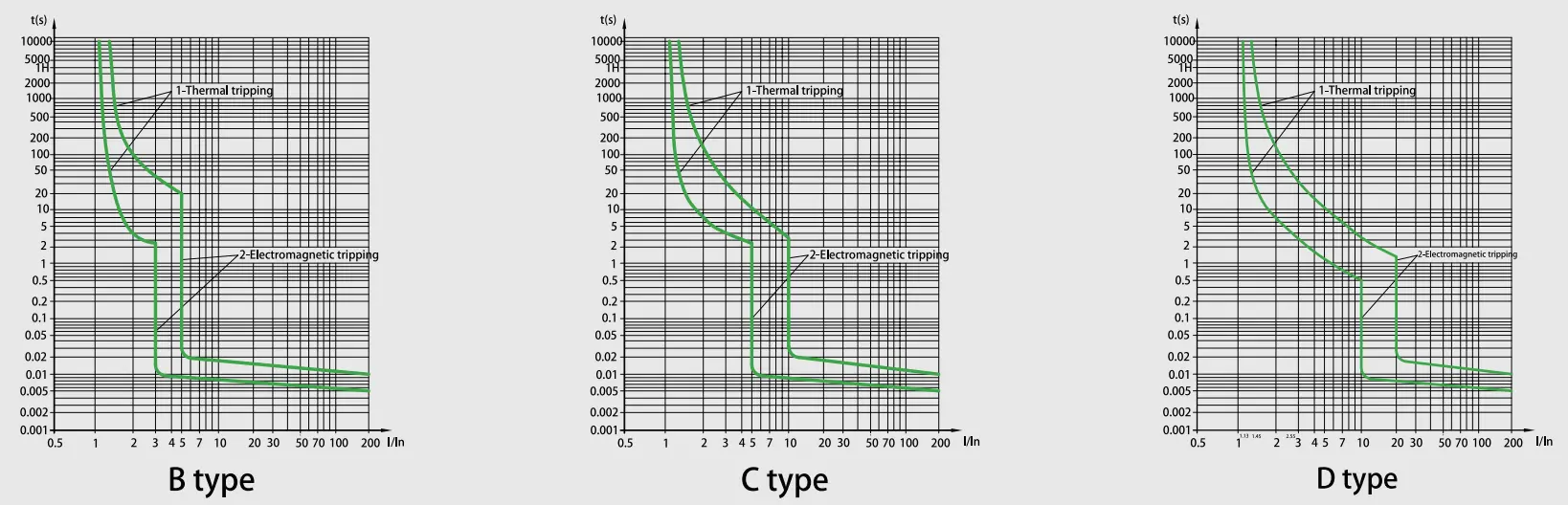

Tšobotsi ea ho lokolloa ha potoloho ea potoloho

NO.	E reiloe hajoale ea tokollo(A)	Boemo ba pele	Lekola hajoale	Nako e boletsoeng	Sephetho se tla fumanoa	Litlhaloso
1	1-63	boemo bo batang	1.13Ho	t≤1h	E seng leetong
2	1-63	holim'a teko e fetileng	1.45ln	t<1h	leetong	Ho beha boemo ba hajoale ho boleng bo boletsoeng butle-butle ka metsotsoana e 5
3	Ho≤32	boemo bo batang	2.55Ho	1s	leetong
	Ho>32
4	1-63	boemo bo batang	3Ho	t≤0.1s	E seng leetong	Mofuta oa B
			5Ho	t<0.1s	leetong	Mofuta oa B
			5Ka 10ln	t≤0.1s	E seng leetong	Mofuta oa C
			10Ho	t<0.1s	leetong	Mofuta oa C
			20ln	t≤0.1s	E seng leetong	D mofuta
				t<0.1s	leetong	D mofuta

Mamello(Ts'ebetso)

Sehlopha	Lipotoloho tsa Ts'ebetso	Khafetsa ea ts'ebetso	E lekantsoe hajoale
Mamello ea motlakase	4000	240/h	1-32
		120/h	40-63
Mamello ea mechine	10000	240/h	1-63

Likaroloana

★ Ultra-High Short-Circuit Breaking Capacity

Theknoloji e tsoetseng pele ea ho laola li-arc e finyella bokhoni bo phahameng ba ho sitisa ha bo bapisoa le litekanyetso tsa indasteri, ho netefatsa tšireletso e ka tšeptjoang bakeng sa lisebelisoa tsa motlakase tsa boemo ba indasteri tlas'a maemo a fosahetseng a feteletseng.

★ Sehokelo sa Khokahano ea Mekhoa e Mebeli

Moralo o kopaneng oa "terminal terminal" o ts'ehetsa boema-kepe ba libese tse thata le ho koala lithapo tse tenyetsehang, tse nolofalletsang ho ikamahanya le maemo a se nang lisebelisoa maemong a fapaneng a ho kenya ha ho ntse ho fokotsa nako ea wiring ka 40%.

★ Mokhoa oa ho Boloka Matla bakeng sa Bophelo bo Bolelele

Sistimi ea ts'ebetso e thusoang ke selemo e nang le mamello ea 10,000 ea mochini, e nang le theknoloji ea matšeliso

★ Advanced Composite Enclosure

e nang le meaho e thibelang ho tuma, e thibelang mocheso, le e thibelang tšusumetso e matla e kopantsoeng le liphaposi tse timang arc bakeng sa liketsahalo tse nang le liphoso.

★ Dynamic Current-Limiting Topology

Khatello e bohlale ea ho sebelisa matla e fokotsa maqhubu a phahameng ka ho fetesisa ka 65-80%, 'me e thusa ho ntlafatsa lisebelisoa tse tlase ka 30% ho fokotsa litšenyehelo tsa sistimi.

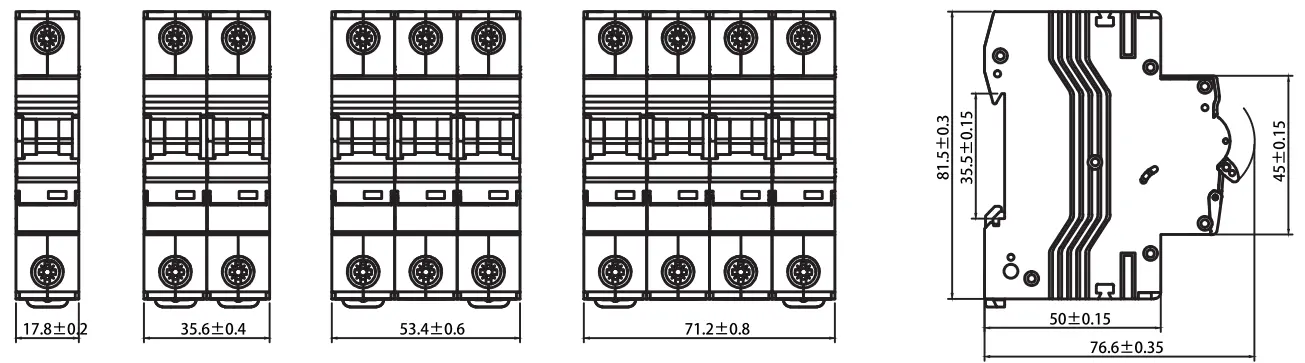

Hlahisa litekanyo

Maemo a Kopo

★ Bolulo: Liyuniti tsa bareki le liboto tsa kabo bakeng sa polokeho ea lehae.

★ Indasteri: Tšireletso ea likhokahano, li-switchgear, le lisebelisoa tse boima tsa motlakase.

★ Khoebo: Meaho ea liofisi le litsi tsa mabenkele tse hlokang ho ts'eptjoa haholo.

Taolo ea Boleng & Teko e Tloaelehileng

★ CDADA MCB e 'ngoe le e 'ngoe e etsa liteko tse matla ho netefatsa hore e latela IEC60898-1:

★ Teko ea Leeto la Thermal: E netefalitsoe ho 1.13In (e seng leeto) le 1.45In (leeto nakong ea hora e le 'ngoe).

★ Teko ea Magnetic Tripping: Teko e nepahetseng ea tokollo bakeng sa litšobotsi tsa B, C, le D.

★ Mamello ea Motlakase: E lekoa bakeng sa lipotoloho tse 4,000 tsa ts'ebetso.

★ Mechanical Endurance: E netefalitsoe bakeng sa lipotoloho tse 10,000.

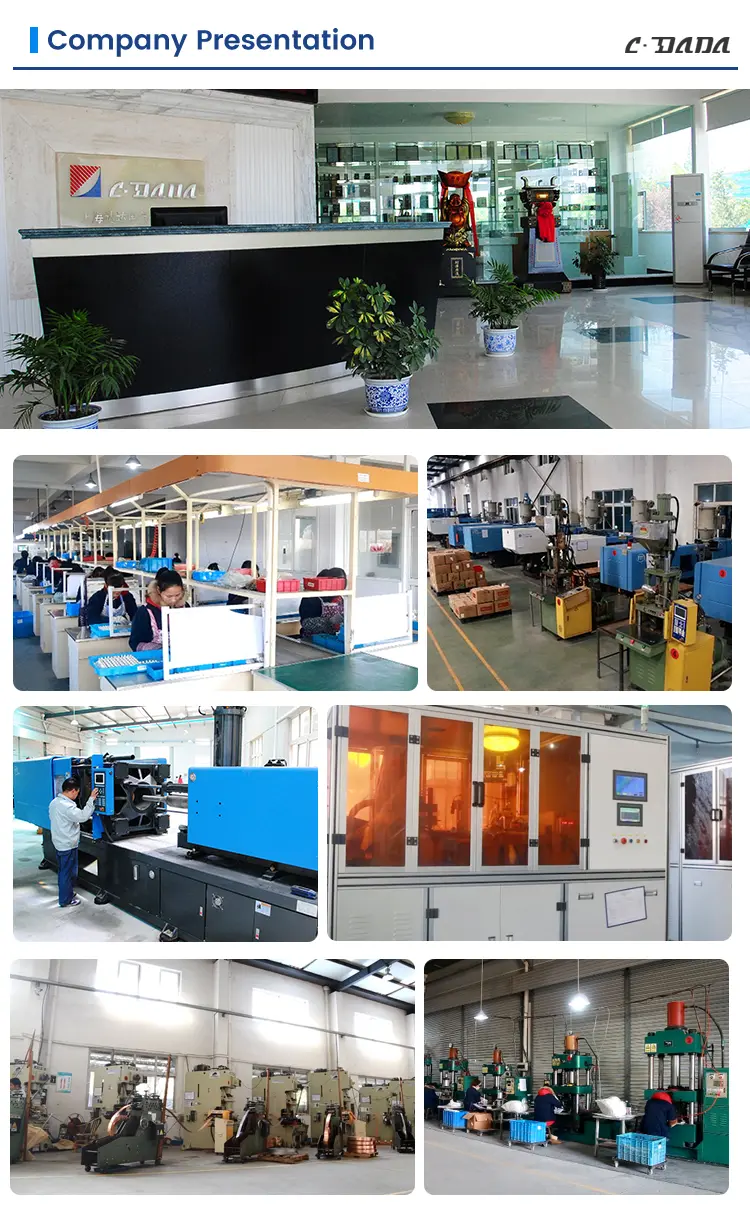

Matla a Feme le Tšehetso

Shanghai DADA Electric Co., Ltd. ke moetsi ea ka sehloohong ea nang le mela e tsoetseng pele ea tlhahiso le sehlopha sa litsebi tsa boenjiniere. Re fana ka:

★ Litšebeletso tse ikhethileng tsa OEM/ODM bakeng sa mefuta ea lefatše.

★ Thepa ea morao-rao ea tlhahlobo ho netefatsa phano e se nang sekoli.

★ Global Logistics Support: Ho paka hantle bakeng sa thepa ea leoatle le moea ho netefatsa hore lihlahisoa li fihla boemong bo phethahetseng.
