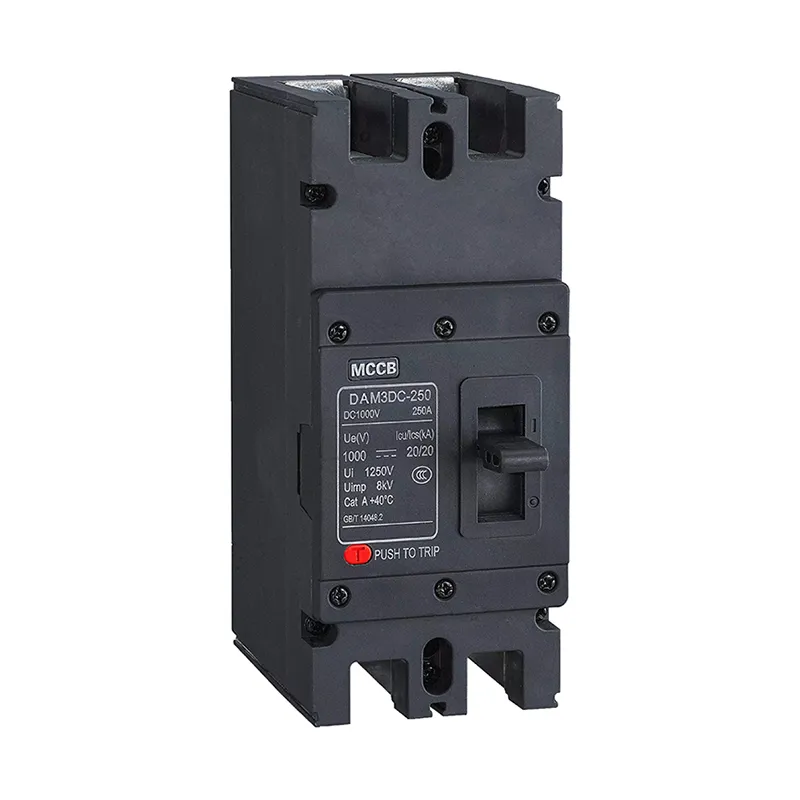

1000V DC Molded Case Circuit Breaker

E etselitsoe litlhoko tse boima tsa lisebelisoa tsa motlakase tse tsosolositsoeng, CDADA DAM3PV Series 1000V DC Molded Case Circuit Breaker e fana ka tšireletso e matla le e khuts'oane ho li-grids tsa motlakase tsa DC le photovoltaic (PV) ho fihla ho DC 1500V le 800A. Shanghai DADA Electric CO., LTD., joalo ka moetsi, DC MCCB ea rona ea ts'ebetso e phahameng e ntlafalitsoe ka ho khetheha bakeng sa mapolasi a letsatsi, limela tsa polokelo ea betri, lisebelisoa tsa ho tjhaja EV, le li-microgrid tsa DC tsa indasteri.

Ho fapana le li-breaker tsa AC, letoto la DAM3PV le na le sistimi e ikhethileng ea ho tima li-arc e thibelang ka mokhoa o sireletsehileng li-arcs tsa DC tse nang le matla a mangata-a bohlokoa lits'ebetsong moo motlakase o lulang o le teng mme li-arcs li sa itime. Ka litekanyo tse lekantsoeng tsa ho sebetsa tsa 1000V kapa 1500V DC, e ts'ehetsa meralo ea letsatsi ea bolulo / ea khoebo (1000V) le ea lisebelisoa tsa letsatsi (1500V).

E fumaneha ho 2P, 3P, le 4P, DAM3PV e fana ka maqhubu a foreimi ho tloha 250A ho ea 800A le maqhubu a lekantsoeng a feto-fetohang (mohlala, 100A-250A bakeng sa 250-frame). E fana ka matla a ho qetela a ho roba ho fihla ho 40kA (ka li-voltage tse tlase) le 20kA ho 1000V/1500V DC, e netefatsa ho tlosoa ha liphoso ho tšepahalang esita le ka lihlopha tse kholo. The breaker e kenyelletsa ts'ebetso ea ho itšehla thajana, ts'ireletso ea IP20, 'me e ts'ehetsa ts'ebetso ea matsoho kapa ea motlakase, hammoho le maeto a thusang, a shunt, le mabitso a alamo bakeng sa ho lekola le ho laola hole.

E netefalitsoe ho ea ka litekanyetso tsa machaba 'me e hahiloe bakeng sa maemo a thata (Pollution Degree 3, -5°C to +40°C), CDADA DAM3PV ke khetho e bolokehileng, e scalable, le e loketseng bokamoso bakeng sa ts'ireletso ea matla a DC.

Litlhaloso Tse Bohlokoa

Hobaneng u Khetha CDADA 1000V DC Molded Case Circuit Breaker?

★ Theknoloji ea Tšitiso ea 'Nete ea DC Arc

Arc chute e entsoeng ka mokhoa o ikhethileng le sistimi e ntšang matla a khoheli e tiisa tšitiso e bolokehileng ea liphoso tsa DC tse matla-eseng sekhechana sa AC se fetotsoeng.

★ Solar-Optimized bakeng sa 1000V & 1500V Systems

E koahela li-voltage tsohle tse kholo tsa PV, ho tloha marulelong ho isa boemong ba ts'ebeliso, e nang le palo e hlakileng ea palo/voltage.

★ High Breaking Capacity at System Voltage

20kA ho 1000V DC e kopana le litlhoko tsa IEC bakeng sa limela tse kholo tsa letsatsi-e netefatsa tšebelisano e khethehileng le lisebelisoa tse tlaase.

★ Aha-ka-Isolation + Lisebelisoa

E sebetsa joalo ka sesebelisoa se sireletsang le ho itšehla thajana; e ts'ehetsa ho khoptjoa ka remoutu le maikutlo a boemo ka li-module tsa boikhethelo.

★ E tiile bakeng sa Tikoloho e thata

Tekanyetso ea Pollution Degree 3 le mefuta e mengata ea mocheso e etsa hore e tšoanelehe bakeng sa lisebelisoa tsa lehoatata, mabopo kapa marulelong.

★ Global Compliance & Support

E etselitsoe ho latela maemo a IEC, e tšehelitsoeng ke sehlopha sa tekheniki sa Shanghai DADA, se nang le litokomane ka Senyesemane bakeng sa merero ea machabeng.

Lisebelisoa tse Tloaelehileng

Utility-Scale Solar Farms: Tšireletso ea mahlakoreng a DC ho motsoako kapa mochine oa motlakase

Commercial Rooftop PV: 1000V khoele aggregation le ho itšehla thajana liphoso

Battery Energy Storage Systems (BESS): Tšireletso ea libese ea DC

EV Fast Chaging Stations: Kabo ea DC e nang le matla a phahameng

Rail & Telecom DC Grids: Tšireletso e tšepahalang ea "backup power circuit".

Ke hobane'ng ha u khetha CDADA?

★ re na le lihlahisoa tsa "Solar DC" tse inehetseng, ho kenyeletsoa li-circuit breakers tsa DC, fuse, SPDs, le li-componer tse etselitsoeng litlhoko tse ikhethang tsa tsamaiso ea photovoltaic.

★ OEM (letšoao la hau lihlahisoa tsa rona) le lits'ebeletso tsa ODM (moqapi oa moetlo) ke matla a rona. Re tšehetsa lileibole tsa poraefete le ho paka ka mokhoa o ikhethileng.

★ Melemo ea rona ea bohlokoa ke:

1) Litifikeiti tse felletseng tsa machabeng,

2) Bokhoni bo matla ba OEM/ODM,

3) Karo-karolelano e phahameng ea litšenyehelo,

4) Bokhoni bo tšepahalang ba tlhahiso e kholo,

5) Boiphihlelo bo pharaletseng ba ho romela thepa.

Lipotso Tse Botsoang Khafetsa

Q1: Na nka sebelisa AC MCCB bakeng sa lisebelisoa tsa letsatsi tsa 1000V DC?

A1: Ho hang ha ho joalo. Li-breaker tsa AC li ke ke tsa sitisa li-arcs tsa DC ka nepo ka lebaka la khaello ea ho tšela zero. Sena se ka beha kotsing ho hloleha ho hoholo, mollo, kapa tšenyo ea lisebelisoa. Kamehla sebelisa MCCB e netefalitsoeng ke DC joalo ka CDADA DAM3PV.

Q2: Phapano ke efe lipakeng tsa DAM3PV-250 le DAM3PV-400HU?

A2: Sehlomathiso sa "HU" se bolela ts'ebetso e phahameng-ho kenyelletsa taolo e ntlafalitsoeng ea arc, li-terminals tse kholoanyane, le ho tsamaellana le likoahelo tsa khatello ea arc. Mefuta ea HU e khothaletsoa bakeng sa lits'ebetso tsa bohlokoa tsa letsatsi.

Q3: Na ke hloka sekoaelo sa arc?

A3: E khothalelitsoe haholo ka har'a likhabinete tse koetsoeng. "Sekoahelo sa zero arc" se na le plasma nakong ea tšitiso, ho ntlafatsa tšireletso ea basebetsi le ho fokotsa tšenyo e ka hare-haholo-holo ea bohlokoa ho 1000V +.

Q4: Na e ka sebelisoa e le sesebelisoa sa ho hakolla ka letsoho?

A4: Ho joalo. Mefuta eohle ea DAM3PV e na le litšobotsi tsa ho itšehla thajana-e bolelang hore e fana ka karohano e bonahalang ea ho ikopanya le ho finyella litekanyetso tsa polokeho bakeng sa ho itšehla thajana.

Q5: Hobaneng u khetha CDADA ho feta ABB, Schneider, kapa Eaton bakeng sa DC MCCBs?

A5: CDADA e fana ka:

● Tšireletso ea 1000V / 1500V DC e nang le litšenyehelo ntle le ho senya tšireletso

● Sesebediswa se felletseng sa ecosystem (shunt, alamo, remote control)

● Ho fana ka thepa ka potlako le tšehetso ea lehae Asia, Afrika, le LATAM

● Tšepahala ea tšimo e netefalitsoeng ho> 10GW ea merero e kentsoeng ea letsatsi lefatšeng ka bophara
